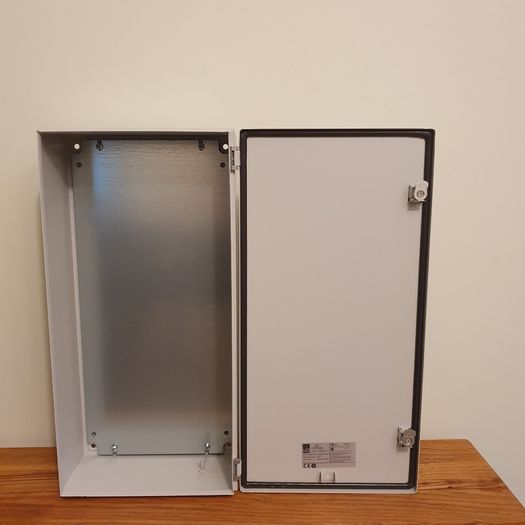

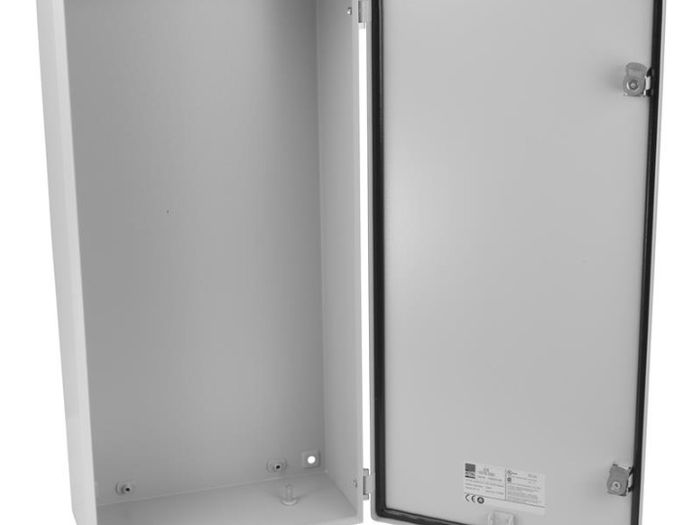

Wall mounted enclosure with door and mounting plate of sheet steel Rittal E-Box EB 1578.500

Brand new
Wall mounted enclosure with door and mounting plate of sheet steel Rittal E-Box EB 1578.500

Width: 300 mm
Height: 600 mm
Depth: 155 mm

3 available

Product description

Article number:
EB 1578.500
Material
Enclosure and door: Sheet steel, all-round foamed-in PU seal
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint
Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure with hinged door
180° hinge
Cam lock with 3 mm double-bit insert
Mounting plate
Protection category NEMA
NEMA 4
Protection category to IEC 60 529
IP 66
IK Code
IK08
Dimensions
Width: 300 mm
Height: 600 mm
Depth: 155 mm
Dimensions mounting plate (W x H)
275 mm x 585 mm
Material thickness - enclosure
1.38 mm
Material thickness - door
1.25 mm
Material thickness of mounting plate
2 mm
Lock
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
11 kg
Customs tariff number
94032080
EAN
4028177440890
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
EB E-Box, WHD: 300x600x155, Sheet steel, with mounting plate, with door
