Solar PV Power Meter ( Handheld Pyranometer) Solar Radiation, Solarimeter Irradiance Measurement

Check if your PV system is working properly.

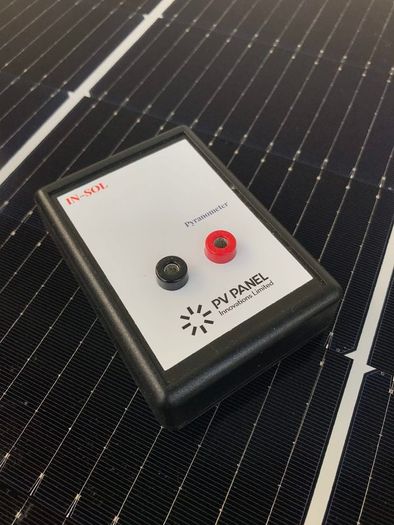

The Solar PV IN-SOL Radiation Meter - is an affordable Solar Pyranometer.
Finding an affordable means to measure input power to PV panels (photovoltaics) and checking their efficiency is of the utmost importance as Solar PV becomes the energy source of the future

Also designed to measure the SHGC (g factor) of your home window glazing and help reduce overheating and control the total solar power heat in w/m2 that enters your home or business.

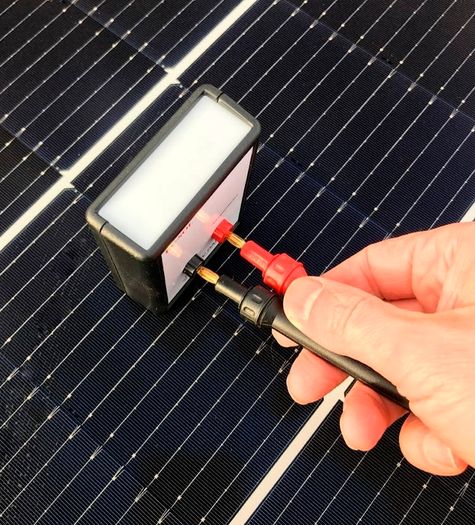

Can also be used to plan or install your new PV system and can be connected to your weather station, your raspberry pi / Arduino or your existing multimeter .

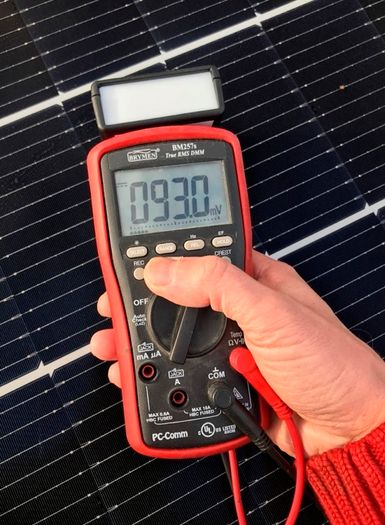

Provides easy to read irradiance values using your multimeter.

Produces a linear voltage from 1mv to 1400mv which corresponds with the solar irradiance from 1w/m2 to 1400w/m2 .

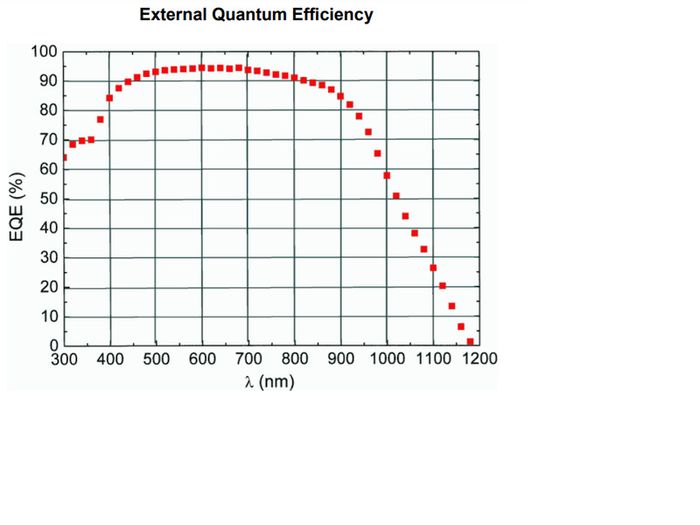

The Solar PV Power Meter has a spectral sensitivity range of between 400nm and 1200nm.

Designed to provide a similar response to PV panels.



Spectral range: 300~1200nm
Measuring range: 0~1400W
Power Supply: Not Applicable (Self Powered)

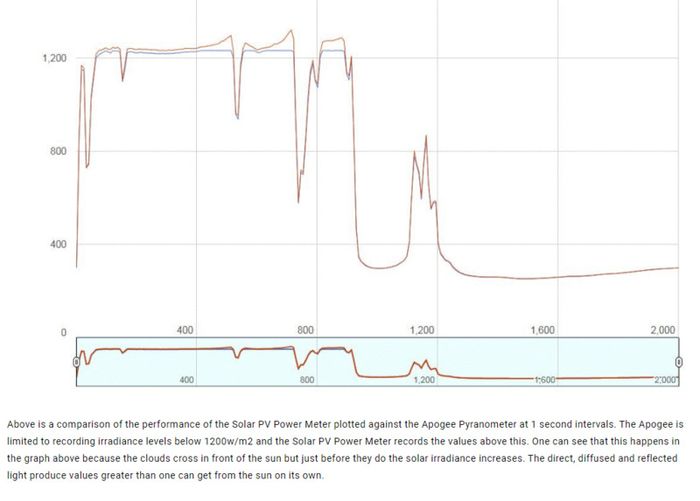

Calibrated with the EKO ML-01 Silicon Pyranometer.
Response time <1ms
Spectral error +/- 5%
