Solar Charge Controller 50A 12V/24V PWM Auto Paremeter Adjustable LCD Display with Dual USB Load Timer Setting ON/Off Hours Solar Regulator

Shipping Nationwide 1 to 2 working days
Collection to be arranged
Cash on Delivery COD (Pay on Delivery )

Condition: 100% New in Box

Item:B224


Description:

[Solar Controller]: 12V/24V Auto; Rated Charge Current: 50A, Discharge Current: 30A; Dual USB Output: 5V/2.5A max, to support mobile phone charging.

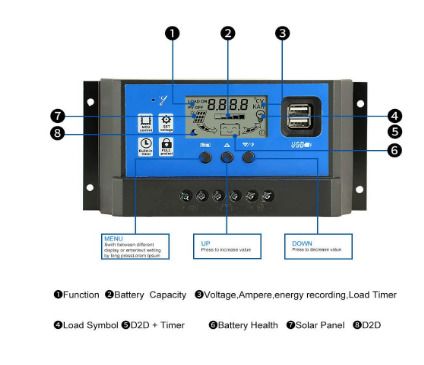

[Solar Regulator LCD Display]: Charging/discharging Current, solar panel and battery Voltage, cumulative power generation and discharge power query, temperature, light control+delay control and other functions.
[Protection functions]:Dual mosfet Reverse current protection, low heat production. Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection, suitable for home, industrial, commercial etc.

Features:
1. Batt voltage: DC 12V/24V Auto
2. Charge /Discharge current: 50A
3. Max Solar input: < 50V (12V system Optimal charging voltage: 14V----20V)
4. Two USB output: 5V/3A
5.Load Mode: 24 hours, 1-23 hours, 0 hour
6.Battery Option : 1. AGM = Sealed、Flooded / OPEN. 2. GEL
7.Operating temperature: -35℃-60℃
8.Protection:short-circuit protection /open-circuit protection / reverse protection / over-load protection.

Parameters:
1.Below Battery Voltage Control Parameters are in 12V system, please double the values in 24V system.
2.Equalization: B01: sealed 14.4V / B02: Gel 14.2V / B03: flood 14.6V
3.Float Charging Voltage: 13.7V
4.Low Voltage Disconnect Voltage: 10.7V
5.Low Voltage Reconnect Voltage: 12.6V
6.Battery Voltage Control Parameters (defaul,adjustable)

1.Floating charge Voltage (HVD 13.3V-14V)
2. Recovery after under Voltage (LVD 11V-13.5V)
3. Under Voltage protection (RVD 9V-12.3V)

No offers under the asking price
