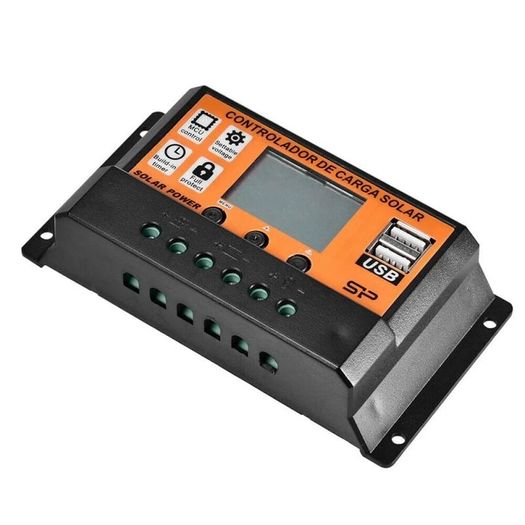

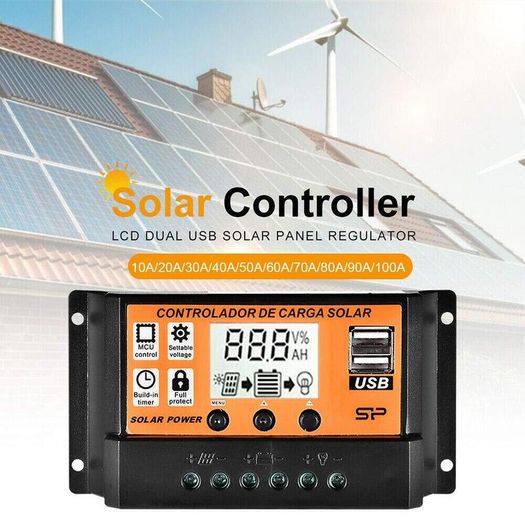

Solar charge controller 10-100A MPPT/PWM 90A

Maximum power point tracking technique that is advanced, with an efficiency of at least 99.5%. The system performs better because to high-quality components, and the conversion efficiency is 98% at its highest. extremely quick tracking speed and assurance of tracking effectiveness.
- Large-screen LCD display; customizable charging and discharging parameters; shutdown memory; charge and discharge current display; cumulative power generation and discharge power query; temperature display; light control delay control; and other functions.
- Dual USB output with a 2.5A maximum current. The system control parameters are changeable, simple to establish, and operate. They are equipped with all necessary components. built-in fault clearing, automatic recovery controller, overheating, overcurrent, short circuit, and open circuit protection. High power charging mode, two-way MOS tube anti-flow circuit, and extreme heat.
-Short circuit, open circuit, reverse connection, and overload protection built in. Reverse current with a low calorific value and a self-recovery feature won't harm the controller.
-Temperature, charging current, and discharging current are all displayed in real-time. Modern MPPT autofocus charging tracking features two-way focus tracking, high charging efficiency, and no stop detection.
Specifications:
Name: LCD screen solar controller

Voltage: dc 12v/24v

display: lcd screen

Self consumption: <10ma

Overload: 14.4v/28.8v

Overload Float Charge: 13.7v/27.4v

Charge recovery voltage: 12.6v/25.2v

Over discharge: 10.7v/21.4v

Over discharge recovery: 12.6v/25.2v

Dual USB output: 5V/2A (cell phone charging, iPad, etc.)

Working temperature: -35--60 ℃
