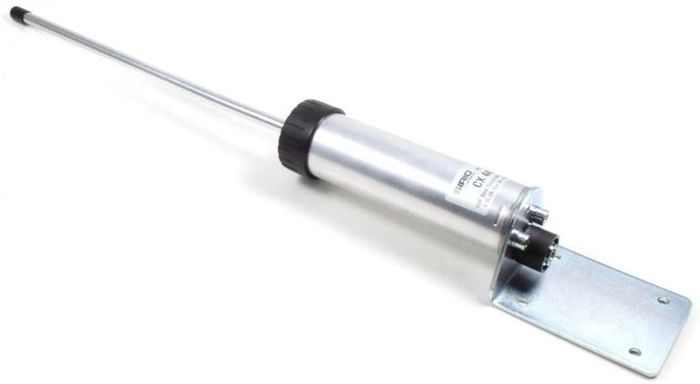

Sirio Cx 440 Uhf Base Antenna

Features:

• Base station antenna, Mono-band
• Low-gain, Omnidirectional
• Factory tunable according to specific customer's frequency
• Protection from static discharges DC-Ground
• Made of aluminium alloy 6063 T-832
P/N 2102701.00 CX 440

Electrical Data

• Type: 3/4? coaxial J-pole
• Frequency range S.W.R. ? 1.5:1:
CX 440: 440-455 MHz
• Impedance: 50? unbalanced
• Radiation (H-plane): 360° omnidirectional
• Radiation (E-plane): beamwidth at -3 dB = 60°
• Polarization: vertical
• Gain: 2dBd - 4.15 dBi
• Bandwidth at S.W.R. 2:1:
CX 440: 33.5 MHz
• S.W.R. at res. freq.: ? 1.2:1
• Max. power: 250 Watts
• Feed system / position: gamma match / base
• Connector: N-female

Mechanical Data

• Materials: Aluminium, Brass, Steel, Nylon
• Wind load / resistance: 25 N at 150 Km/h / 180 Km/h
• Wind surface: 0.02 m²
• Height (approx.):
CX 440: 588 mm
• Weight (approx.): 450 gr
• Mounting mast: Ø 35-42 mm
