Sensing Thermostat (Raychem RAYSTAT-CONTROL-10)

The nVent RAYCHEM RAYSTAT-CONTROL-10 is a user-friendly surface sensing thermostat designed for measurement and control of heating cables. It features a 25 A control relay, which can be configured as volt-free, and a 2 A volt-free SPDT alarm relay. Parameter and alarm conditions are displayed on a digital screen, and settings can be programmed easily, even without a power supply. The unit comes with a 3-meter long silicone-extension Pt100 sensor, allowing for flexible placement of the electronics. Two M25 entries facilitate the connection of power and heating cables. Mounting can be done on pipes using the SB-100 or SB-101 support brackets.

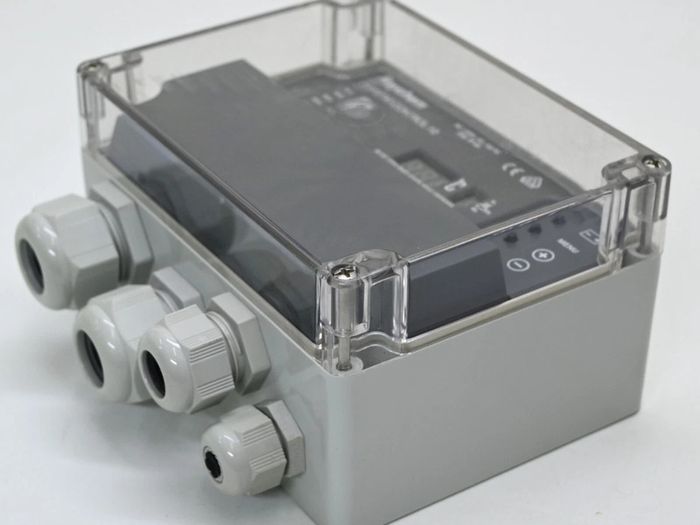

Visual Description of Unit: The device is housed in a grey polycarbonate base with a transparent lid. A digital display shows parameters and error indications. It features buttons for navigation and setting adjustments. Two M25 cable entries are visible on the side.

General Specifications
Category Details
Application Surface sensing
Area of use Ordinary area (indoors, outdoors). Sensing in zone 1 or zone 2 is possible with the separately available MONI-PT100-EXE.
Ambient operating temperature range -20°C to +40°C
Supply voltage (nominal) 230 V +10%/-10%, 50/60 Hz
Internal power consumption < 14 VA
Enclosure Specifications
Feature Details
Enclosure Rating IP65
Base and lid material Grey polycarbonate base, Transparent lid
Lid fixing 4 captive screws
Entries 2 x M25, 1 x M20, 1 x M16
Gland plug Direct entry of heating cable into unit with M25 connection kit, 1 x M20
Approvals
[EAC certification mark] С-ВЕ.БЛ08.B.01634
Made in GB

Dimensions
The unit has overall dimensions of approximately 160 mm (width) x 120 mm (height) x 90 mm (depth). The mounting holes are spaced on 148 mm x 108 mm centers.

Temperature Sensor Details
Specification Details
Type 3-wire Pt 100 according to IEC Class B
Maximum exposure temperature 200°C
Area of use Ordinary area
The sensor can be extended with a 3-wire shielded cable up to a maximum of 20 Ω per conductor (max. 150 m with a 3 x 1.5 mm² cable). For sensing in hazardous areas (zone 1 or zone 2), the MONI-PT100-EXE is required. The sensor cable should be shielded if laid in cable ducts or near high-voltage carrying cables. The shield of the extension cable must be grounded at the controller end only.

Output Relays
Relay Type Rating
Control relay Single pole single throw, 25 A at 250 Vac
Alarm relay Single pole double throw, 2 A at 250 Vac, voltfree
Programmable Parameter Settings
Parameter Range/Setting
Temperature setting 0°C to +150°C
Hysteresis 1 K to 5 K
Low Temperature Alarm -40°C to +148°C
High Temperature Alarm +2°C to +150°C or switched OFF
Heater Operation if Sensor Error ON or OFF
Volt Free Operation YES or NO
Parameters can be programmed without external power supply, utilizing an internal battery, and are stored in non-volatile memory.

Diagnosed Alarms
Alarm Type Description
Sensor errors Sensor short/Sensor open circuit
Low temperature High temperature/Low temperature
Voltage errors Low supply voltage/Output voltage fault

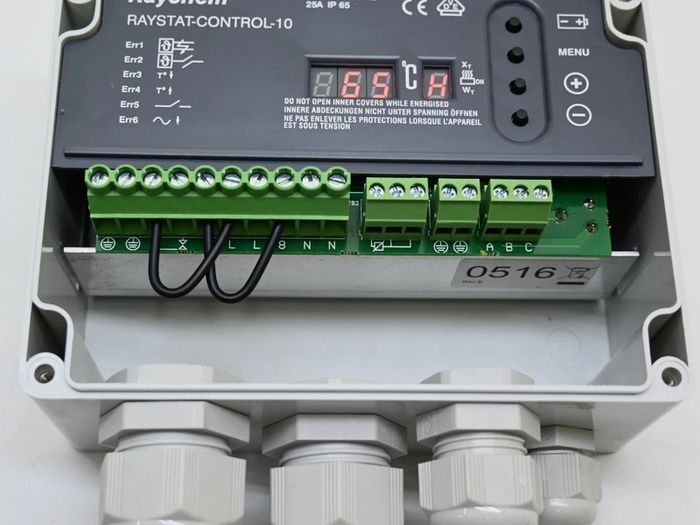

Display Layout and Controls
A. LED Display: Indicates parameters and error messages.

B. Push buttons:

1. Battery activation
2. Parameter selection
3. Increase value
4. Decrease value
Connection Details
Normal Operation: Wiring diagram shows connections for power supply (L1, N), a 30 mA circuit breaker, the RAYSTAT-CONTROL/ECO-10 unit (labeled 5LL8NN, W/B RR, ABC), alarm relay (2 A max.), heating cable, and Pt 100 sensor.

Voltage Free Operation: This mode is achieved by removing links W1 and W2. The diagram illustrates connections for L1, L2, L3, N, a 30 mA circuit breaker, the RAYSTAT-CONTROL/ECO-10 unit, a 2A relay, heating cable, and Pt 100 sensor.

Notes on Wiring:

Electrical protection by circuit-breaker may be needed for local circumstances, standards, and regulations.
Depending on the application, one- or three-pole circuit-breakers or contactors may be used.
Optional components are indicated.
Connection Terminals
Connection Type Terminal Size
Supply 3 terminals for 0.75 mm² to 4 mm²
Pt 100 connection 4 terminals for 0.75 mm² to 2.5 mm²
Control relay connection 3 terminals for 0.75 mm² to 4 mm²
Alarm relay connection 3 terminals for 0.75 mm² to 2.5 mm²
Mounting Method
Surface mounting is supported via 4 fixing holes on 148 x 108 mm centres, with M4 clearance. Recommended support brackets are SB-100 and SB-101.
