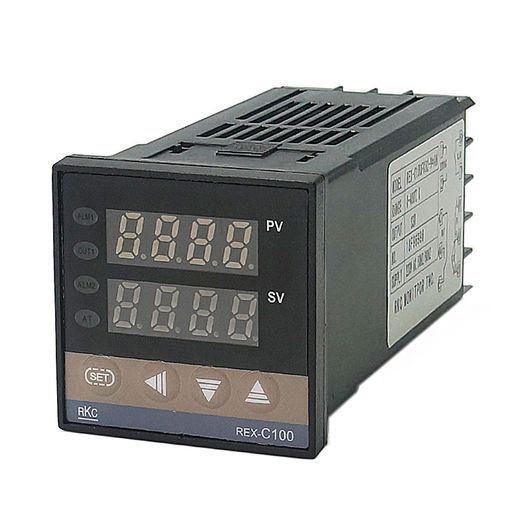

REX-C100 PID intelligent temperature controller Universal/K Type REX C100 Thermostat SSR Relay output

100% Positive feedback, Buy with confidence from an trusted experienced seller

All item are new and not open to offers. Will do a deal if buying multiple items but this item is priced to sell and will not be discounted further

Can post same working day if paying via PayPal


Specifications:

Measuring accuracy: 0.5%FS
Cold-end compensation tolerance: 2 c (can be modified by software in 0~50 c)
Resolution: 14 bit
Sampling cycle: 0.5 Sec

Dimensions:48 x 48 x 110 (mm) 0.2mmProcess value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED

PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Heat-reset proportional cycle: 1~100 sec

Detective temperature range:0 to 400 c

Insulation resistance: >50M ohm(500V DC) Insulation resistance: 1500V AC/min Power Consumption: 10 VA Service environment: 0~50 c , environment with no corrosive gas 30~85% RH

No offers under the asking price
