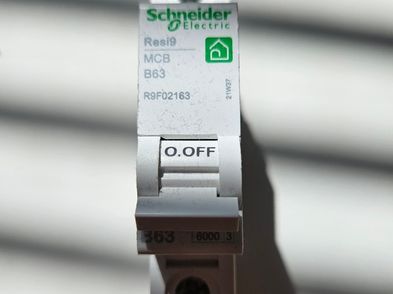

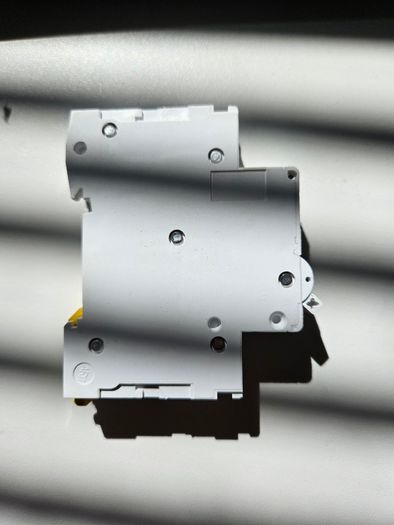

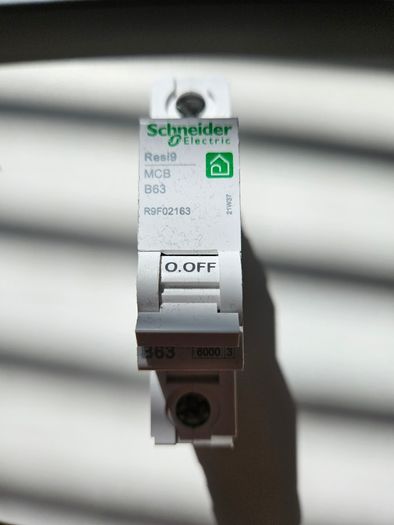

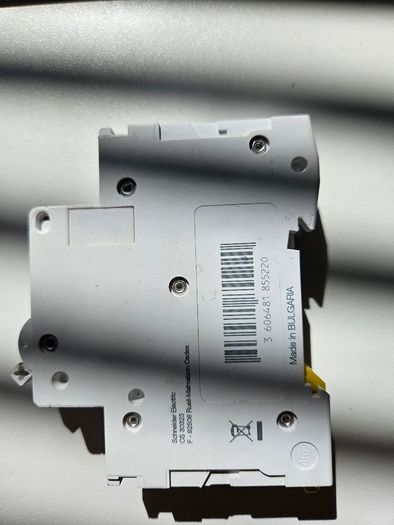

R9F02163 Schneider 63A Type B MCB (Miniature Circuit Breaker)

Status: new
P/N R9F02163

Range
Resi9
Product name
Resi9 MCB
Product or component type
Miniature circuit-breaker
Device application
Protection
Poles description
1P
Number of protected poles
1
[In] rated current
63 A
Network type
AC
Trip unit technology
Thermal-magnetic
Curve code
B
Breaking capacity
6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
Standards
EN/IEC 60898-1
Quality labels
EAC
ComplementaryNetwork frequency
50/60 Hz
[Ue] rated operational voltage
230 V AC 50/60 Hz
Magnetic tripping limit
3...5 x In AC
Limitation class
3
[Ui] rated insulation voltage
440 V AC
[Uimp] rated impulse withstand voltage
4 kV
Control type
Toggle
Local signalling
ON/OFF indication
Mounting mode
Clip-on
Mounting support
DIN rail
9 mm pitches
2
Height
81 mm
Width
18 mm
Depth
72 mm
Embedding depth
44 mm
Product weight
120 g
Colour
White (RAL 9003)
Mechanical durability
20000 cycles
Electrical durability
10000 cycles
Connections - terminals
Tunnel type terminals (top or bottom) - 1...35 mm² - rigid
Tunnel type terminals (top or bottom) - 1...25 mm² - flexible with ferrule
Tunnel type terminals (top or bottom) - 1...25 mm² - flexible
Wire stripping length
14 mm
Tightening torque
3.5 N.m
Earth-leakage protection
Without
EnvironmentIP degree of protection
IP20
Tropicalisation
2 conforming to IEC 60068-1
Relative humidity
95 % at 55 °C
Ambient air temperature for operation
-25…60 °C
Ambient air temperature for storage
-40…60 °C
