Pulsar Switching Power Supply For 8 HD Cameras Psdc08128T

CCTV POWER SUPPLY up to 8 Cameras

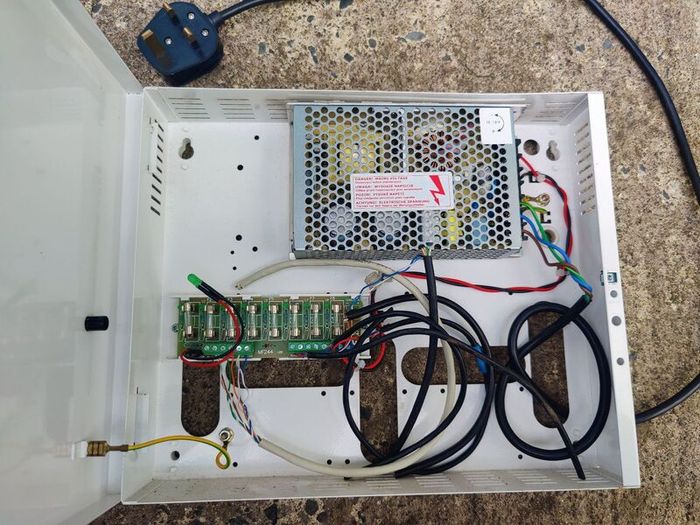

Used in working condition.

CCTV Power Supply - Grey Enclosure
Pulsar Switching Power Supply For 8 HD Cameras Psdc08128T

MOST IMPORTANT FEATURES
power output 8x 1A/12V DC
output voltage regulation 12V÷ 15V DC
8 outputs protected by 1A fuses
wide supply voltage range 176÷264V AC
high efficiency 83%
LED optical signaling
protections:
short circuit SCP
overvoltage OVP
overvoltage
overload OLP
warranty – 2 years from the date of production
PURPOSE
PURPOSE

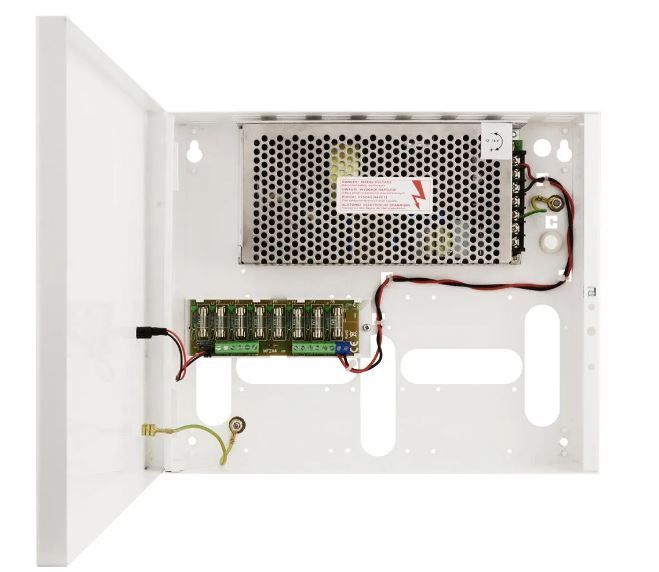

The PSDC08128T stabilized power supply is designed to power CCTV devices requiring stabilized voltage of 12V DC. The output voltage regulation range is adjusted by a potentiometer in the range of 12.0V÷15.0V DC. The power supply has 8 outputs independently protected by fuses. A failure (short circuit) in the output circuit will cause the fuse to blow and disconnect the circuit from the DC power supply (+U). The power supply is placed in a metal housing with a signaling panel.

DESCRIPTION
Using the functionality of the 12V DC power supply from Pulsar will allow for safe power supply of up to 8 industrial cameras, which will additionally be covered by professional protection against the effects of unexpected and dynamic changes that may occur in the state of the power supply network. The PSDC 08128T adapter is equipped with a system of intelligent short-circuit, overload, overvoltage and overvoltage protections, which will guarantee uninterrupted and stable operation of the connected devices.

The solid fuses used in the power supply will skillfully protect each of the adapter's connection circuits and ensure immediate, preventive separation of protected elements. The effectiveness and certainty of the correct functioning of the end CCTV devices are also guaranteed by the high efficiency of the power supply, which is maintained at a level of up to 85%.

TECHNICAL DATA:
Power supply 176÷264VAC
Power output 8 x 1A/12VDC output voltage adjustment range: 12÷15VDC
Fuse 8 x 1A (TOPIK)
Efficiency 0.83
Dimensions 290 x 256 x 52 [+/-2 mm] distance from the surface: 8 mm
Protections SCP, OLP, OVP, surge
Closing screwed
Mounting surface
Signaling optical LED signaling
Made of sheet metal DC01, 0.7mm, RAL9003 (white), metal
Ingress protection IP 20
Warranty 2 years from the date of production
Technical data
Brand
PULSAR
Index
8525
Model
PSDC08128T
Warranty for companies
24 months
Warranty
24 months
Item dimensions
290 x 241 x 51
Voltage regulation
Yes
Optical operation signaling
Yes
OVP overvoltage protection
Yes
OLP overvoltage protection
Yes
UVP battery discharge protection
Yes
Acoustic operation signaling
No
Memory card recording support
No
Gate opening
No
Pentaplex function
No
Sequence
No
Hard drive - eSata
No
RS232
No
Number of outputs
8.00 pcs.
Alternating supply voltage
230V
Output load
1000.00 mA
PSU power
100W
Battery supported
NO
Protections
Fuses
Constant supply voltage
12V - 15V
Output voltage (powered by box)
12V - 15V
