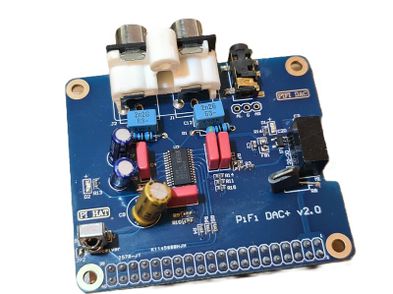

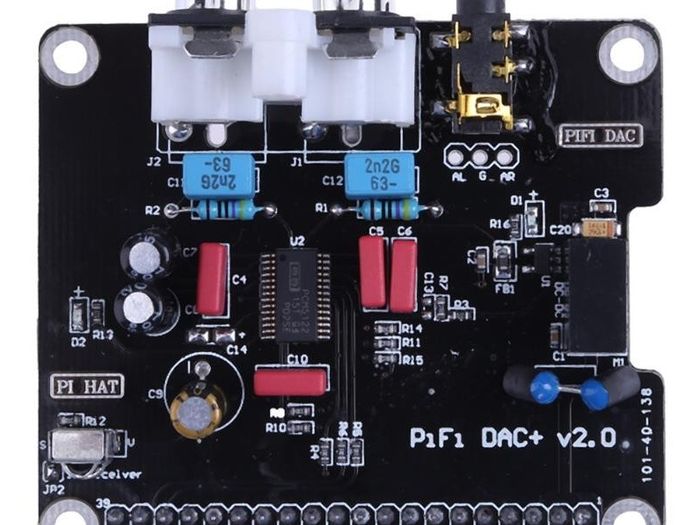

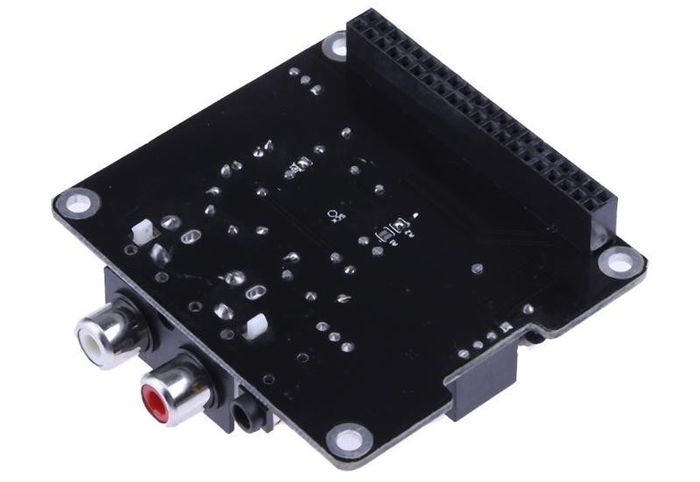

PiFi DAC+ v2.0 HiFi Audio Expansion Sound Card for Raspberry Pi

Unleash studio-grade sound from your Raspberry Pi with the PiFi DAC+ v2.0. This premium sound card is engineered around the renowned TI Burr Brown PCM5122 DAC chip, delivering ultra-clear audio via the I2S interface. Whether you're streaming music, building a media centre, or crafting a DIY audio solution, this Pi HAT brings high-fidelity sound to your fingertips.

Designed for audiophiles and DIY enthusiasts, this I2S-based DAC board delivers crystal-clear sound with minimal distortion.

💶 Price: €30
📍 Collection / Postage: Available from Carlow or Dublin

🔊 Product Description

The PiFi DAC+ v2.0 is a high-performance digital-to-analog converter designed for Raspberry Pi 3B, 2B, and B+ models. It supports tones up to 24-bit/384kHz, offering a 112dB dynamic range and -93dB THD for pristine playback. With RCA and 3.5mm jack outputs and a built-in infrared receiver, it's ready for remote-controlled audio setups and direct speaker or headphone connections.

⚙️ Features

🎧 TI Burr Brown PCM5122 DAC chip for superior audio fidelity
🔄 I2S interface for low-latency audio
📡 Built-in IR receiver for remote control
🔊 Dual output options: RCA stereo jacks and 3.5mm headphone jack
📈 24-bit/384kHz resolution, 112dB SNR, -93dB THD
🧩 Compatible with Raspberry Pi 3B/2B/B+
🔧Plug-and-play with Volumio, Moode, and other audio OSes
🔧Compact Pi HAT form factor for seamless integration
