Network Analyser

Tenma 72-8495
Compact 2-in-1 unit provides standard digital multimeter functions, as well as pin configurations on network and voice cables. Dual pinout indicator provides sequential verification of each pin on a network cable, and the included remote terminator allows testing of cables which are already installed. Digital multimeter measures AC/DC volts and amps, resistance and diodes, and provides audible continuity test.
2,000 Count LCD display
Verifies correct wiring of 10 Base-T, 10 Base Thin Ethernet, RJ-45, RJ11, RJ12 & BNC network cables
Autoranging multimeter functions
Selectable auto/manual range selection
Max & Data hold
Selectable continuity beep
Rugged overmoulded housing
12 month limited warranty *view Terms & Conditions for details
Applications
Test & Measurement, Laboratory, Electronics Service

Contents

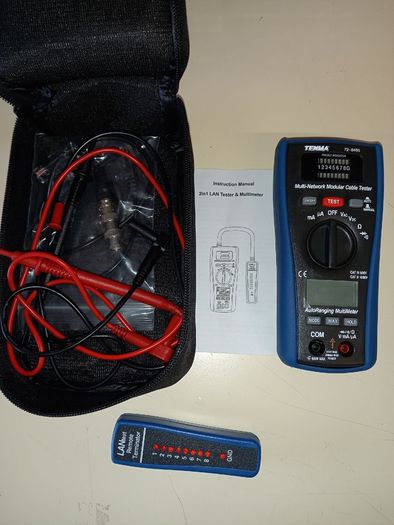

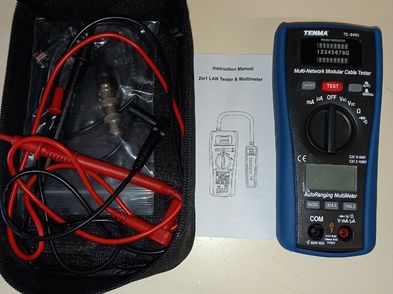

Supplied with 1x 9V & 2x AA batteries, test leads, BNC network cable adaptors, zipper carry case
