Multi-function 3-Phase Digital LCD Display Energy Voltage Current Power Meter

“ Brand New in Box ” (1)

1 available in stock
__________________

Collection is available in the Kilkenny Area
or
Postage is available for €6 extra.
Shipping Nationwide: 2-3 working days
__________________

Product Description >>>

Type:Multifunction
Model: ZM194-D9Y
Measuring range: 5A
Accuracy: 0.5
Power supply voltage: AC/DC85~265V
Panel size:120x120mm/96x96mm/80x80mm/72x72mm
Hole size: 111x111mm/92x92mm/76x76mm/68x68mm

Technical Parameters:
1.Measurement accuracy:

Current: class 0.5
Voltage: class 0.5
Active power: class 0.5
Reactive power: class 0.5
Power factor: class 0.5
Frequency: +/-0.02Hz
Active energy: Class 0.5S / 0.2S
Reactive power: Class 1.0 / 2.0

2.Signal Input:

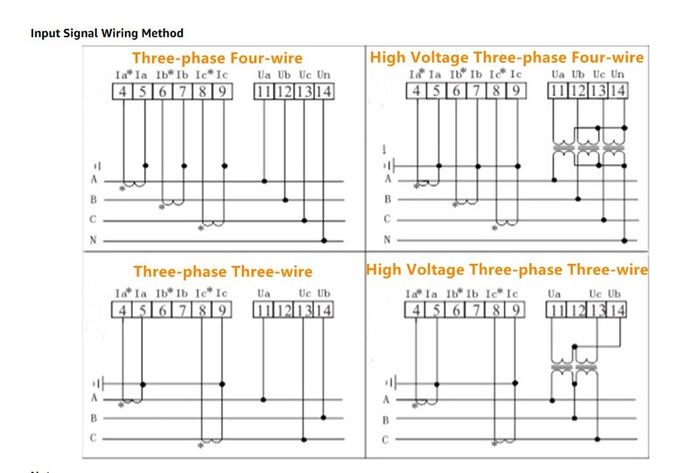

Wiring way: Three-phase four-wire or three-phase three-wire
Rated voltage: AC 380 V
Rated current: AC 5A
Overload: Voltage: 1.2 times (Sustained); 2 times / 1s (Instantaneous) ; Current: 1.2 times (Sustained); 10 times / 5S (Instantaneous)
Power consumption: Voltage: less than 1VA (per phase); Current: less than 0.4VA (per phase)
Impedance: Voltage:more than 300Kohm Current: less than 20m ohm
Frequency: 45 ~ 65Hz

3.Auxiliary power:

Working range: AC/DC 85V~265V
Power consumption: less than 4VA

4.Function module:

Communication interface: Support 1 communications circuit RS-485 Modbus-RTU protocol, baud rate: 1200 ~ 9600bps, default: 2400bps

5.Environment:

Operating environment: -10 ~+ 55 C
Storage environment: -25 ~+ 70 C
Relative humidity: less than 93%, no corrosive gas place
Height above sea level: less than 2500m

6.Safety:

Insulation Resistance: more than 100M ohm
AC withstand voltage: AC2KV

7.Electromagnetic Compatibility:

Electro-static discharge: Class 4
Electrical fast transient pulse train: Class 4
Surge (impact): Class 4

Feature:

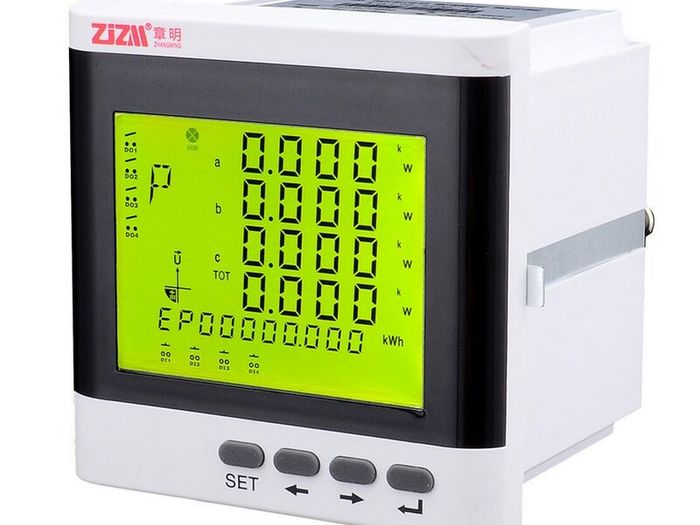

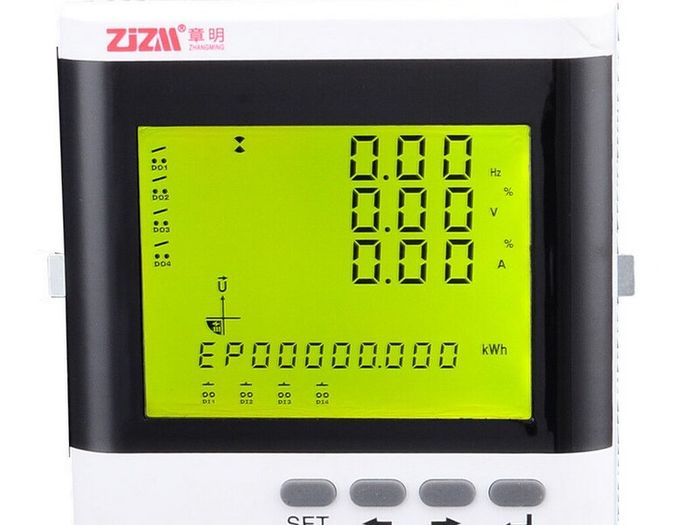

LCD digital display, viewing angle, high brightness

Easy wiring, superior flame retardant properties, safety, environmental protection

Size:
Overall Size 96 x 96mm
Screen Fit Size 91×91mm
Hole size 92 x 92mm
Depth 80mm
