ML145 Sirio CB/10m Mobile Antenna Kit

About ML145 Sirio CB/10m Mobile Antenna Kit

The Sirio ML145 Mag Kit is a CB & 10m mobile antenna tunable from 27 to 28.5 MHz and offers protection from static discharges DC-Ground

Supplied with a strong stainless steel spring 17/7 PH tapered stainless steel whip, standard connection PL259 and 3.6 metres of RG58 cable

Key Features/Specifications:

CB & 10m Mobile Antenna tunable from 27 to 28.5 MHz

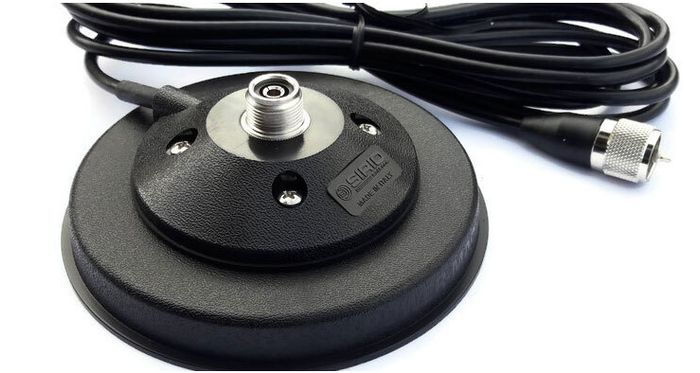

Comes with Magmount
Protection from static discharges DC-ground
17/7 PH tapered stainless steel whip
Impedance: 50 ohm unbalanced
Radiation (H-plane): 360deg omnidirectional
Polarization: vertical
Bandwidth at S.W.R. 2:1: 1340 KHz
S.W.R. at res. freq.: = 1.2
Max. power: 300 Watts (CW) continuous 900 watts (CW) short time
Connector: UHF-male (PL 259)
Cable length and type: 3.6 m of RG 58
Approx. length of antenna: 1420mm
