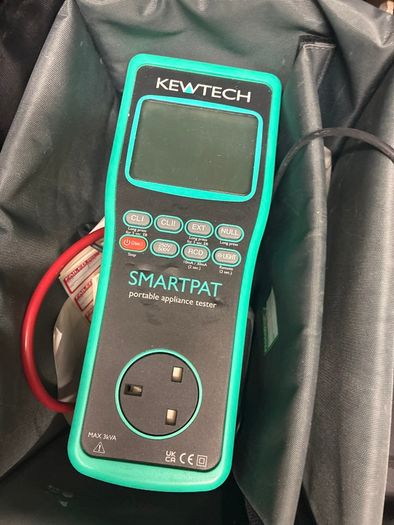

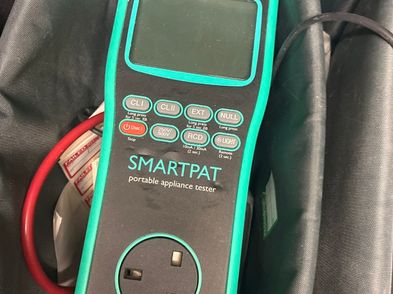

Kewtech smartpat PAT testing machine

Kewtech SMARTPAT PAT Tester – with BlueTooth Technology – Downloadable Test Results – Mains and Battery Operated

Product Details:

The world’s first Wi-Fi enabled PAT tester can be remotely controlled from your phone or tablet for the ultimate downloading PAT tester in functionality and efficiency.

The SMARTPAT can be operated manually or automatically via the free KEWPAT App (Downloadable on android and iOS devices). This top of the range advanced tester provides the fastest and most comprehensive system on the market of any handheld PAT.

As well as covering all your basic requirements for Portable Appliance Testing, the SMARTPAT hosts a number of advanced features that mean you can be sure you have a PAT to test any appliance.

The SMARTPAT has an added benefit of being able to conduct a run leakage test at 230V and 110V, (additional adaptor required - EZY110 adaptor)..a unique A unique feature in the battery powered market to Kewtech.

There is also an advanced function to perform 10mA and 30mA Portable RCD tests.

Key Features:

Long battery life – over 1500 tests

Automatic test sequencing
Backlight display
FREE KEWPAT App for all data logging, product register and reporting
Optional KEW80L Bluetooth printer for label printing is available
Optional 110V adapters for 110V testing is available
Remote or manual control
PASS / FAIL – GREEN / RED screen indicationAppliance status pre-check
Quick check and 5 second continuity options
IT Safe – 500V and 250V insulation test options
230V and 110V run leakage test options
Portable RCD testing without tripping the installed RCD
Substitute leakage
Extension lead test
Fast and easy test lead null
Pass/Fail PAT tester can be transformed into a full downloading PAT tester using Kewtech’s KEWPAT app
Battery & Mains operated
Large, clear, backlit display
The display turns green when an appliance has passed a test
The display turns red when an appliance has failed a test
Capable of running automatic test sequences for Class I and Class II appliances
Automatic test sequences accessible via clearly labeled function buttons
Can create personalised test sequences using the KEWPAT app
Earth bond at 200mA (IT safe)
Quick check continuity
5-second continuity
250V insulation test (ideal for testing surge protected extension leads)
500V insulation test
Substitute leakage test with selectable substitute leakage limits (110V or 230V)
Extension lead test
Portable RCD tests 10mA and 30mA
Easy-to-use
Includes an extension lead adapter
Includes an earth continuity test lead with probe and crocodile clip
Includes a 230v mains lead
Appliance pre-check
Test lead nulling feature
Key Features:

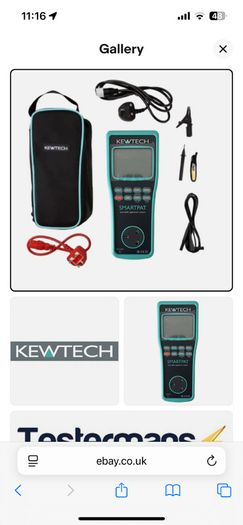

Kewtech SMARTPAT PAT Tester –Battery Operated
Mains Lead
Earth Lead with Probe and Crocodile Clip
Extension lead Adapter
Carry Bag with Strap
Quickstart Manual
