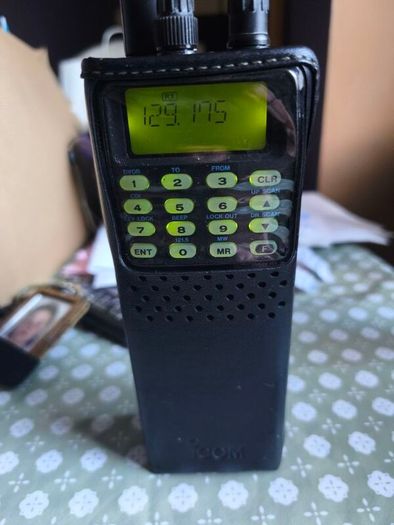

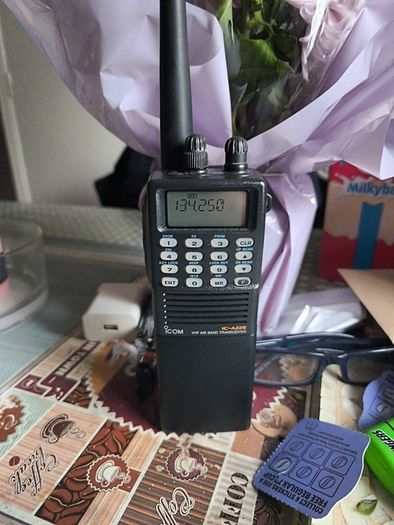

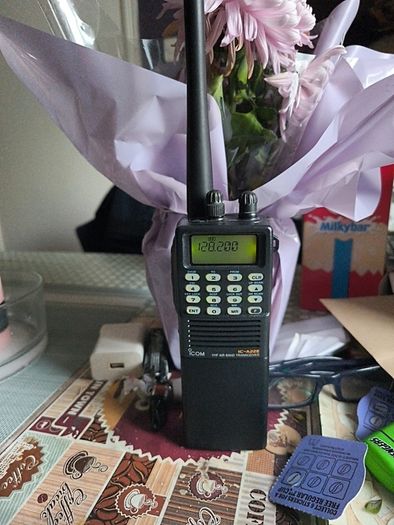

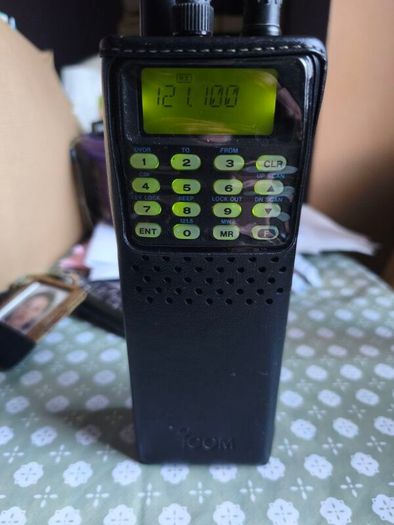

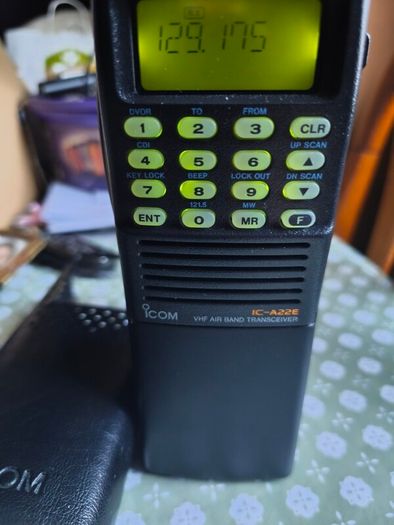

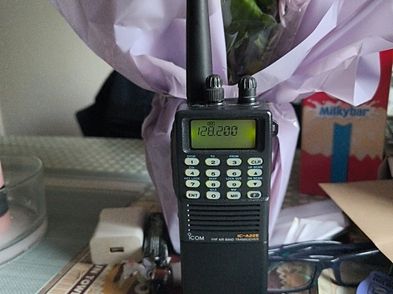

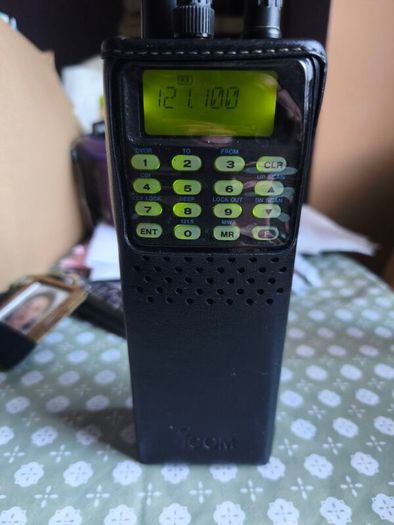

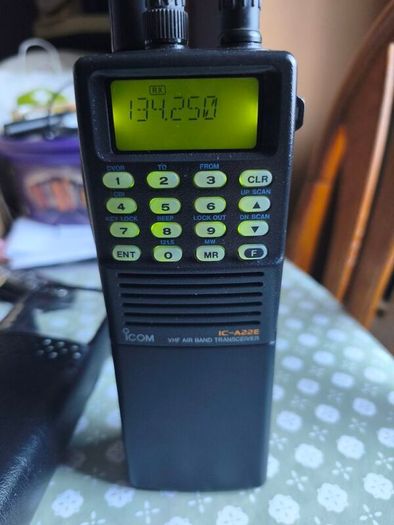

Icom IC-A22E AirBand Radio Transceiver

@David.Creighton SPECIFICATIONS

GENERALType:Airband transceiverFrequency range:Europe
TX: 118-137 MHz
RX: 108-137 MHzTuning steps:25 KHzFrequency stability:±20 ppm @ -10 to +50°C (14 to 122°F)Mode:AMChannels / memory management:50 regular with alpha tags (Six characters)Power supply:12-15 VDCCurrent drain / power consumption:RX: 55-400 mA

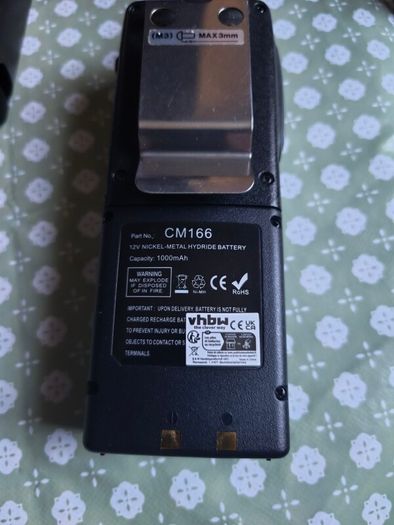

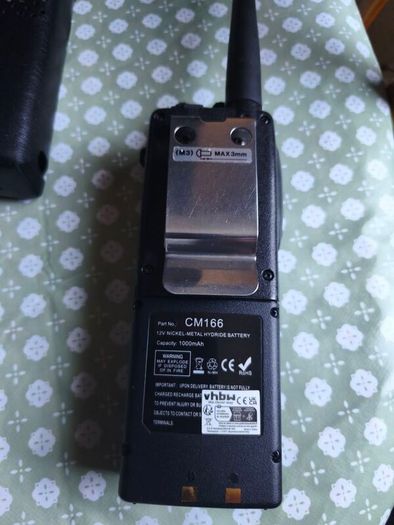

TX: Max 1 AAntenna impedance / connector:50 ohm / BNCDimensions (W*H*D):57*153*35 mm (2.24*6.02*1.38")Weight:465 g (16.4 oz), with CM-166 and antennaOther features:121.5 MHz quick access. Includes a VOR receiver with CDI function.
The navigation features include TO and FROM the VOR, course deviation
indicator and automatic bearing set system. ANL. Scanning.



RECEIVER SECTIONReceiver system:Double conversion superheterodyne
1st IF: 35.8 MHz
2nd IF: 455 KHzSensitivity:1 uV (6 dB S/N)Squelch sensitivity:Less than 4 uV (Tight)Noise figure:Selectivity:8 KHz (-6 dB)
25 KHz (-60 dB)Image rejection:AF output power / speaker:600 mW at 10% distortion / 8 ohmExternal speaker connector:



TRANSMITTER SECTIONRF output power:1.5 W carrier (5 W PEP)Modulation system:Low level modulationSpurious emissions:Better than -60 dBMicrophone impedance / connector:150 ohm / ?-pinMicrophone input level:? mV

@David.Creighton I'm not sure to be totally honest .. but it's in new condition with new battery
