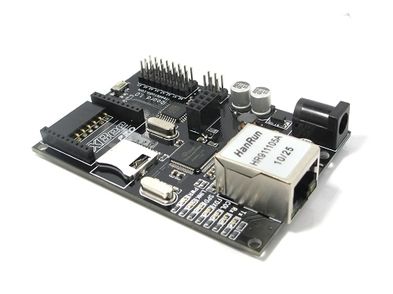

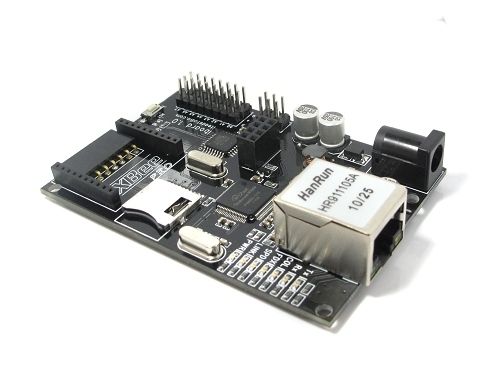

Iboard 1.1

Overview
Iboard is a unique Arduino board which features a WIZnet ethernet port, an XBee socket, nRF24L01+ module interface and an ATMega328. This board will add wireless XBee / nRF24L01+ control as well as internet connectivity to your projects. Its great for anything from home automation to robot control. The possibilities are endless!
Iboard can be used as an Ethernet, wireless communication project development platform. Iboard support POE (power on Ethernet) power supply, and Micro SD for mass storage. There are some 3pin electronic brick/ sensor brick interface breakout on board, it offer an easy way for a quick prototyping. You can setup a web server through which you may communicate with a remote Arduino using XBee radios, bluetooth or APC modules. This information can be posted to a web site, or to Twitter.
The board requires FTDI basic board to upload sketch, you can use our Foca board to do it. Iboard can be powered by a mini USB , power Jack or POE.

Software
Iboard is designed to be compatible with SD and Wiznet libraries from Arduino ide, and all demo code can be downloaded directly from internet.
With embedded bootloader, Iboard is easy to use by Arduino IDE through Foca series. ISP of Atmega328 is broken out for download firmware easily.
Note
The IBoard does not have a USB connection. So you need a USB/Serial adapter - recommend the FT232RL breakout board http://www.adverts.ie/7193860
http://www.adverts.ie/8223081

Specification
Microcontroller ATMega328P
Max Frequency 16MHz
RAM Capacity 2K
FLASH Capacity 32K
External Resources
Onboard SD socket
Onboard Ethernet
Electronic Brick Interface
Power Supply
External 12V
External 24V
External 3.3V
External 7V
External 9V
USB 5V
I/O Operation Level 3.3V
Board Size 80mm x 54mm
Model IM120410001
Version 1.1
Weight 45.00g
Accessories No
