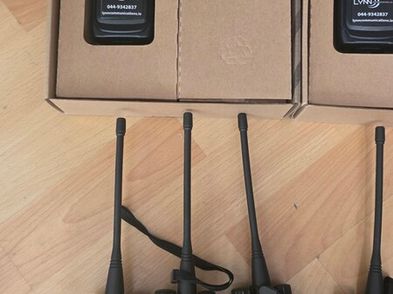

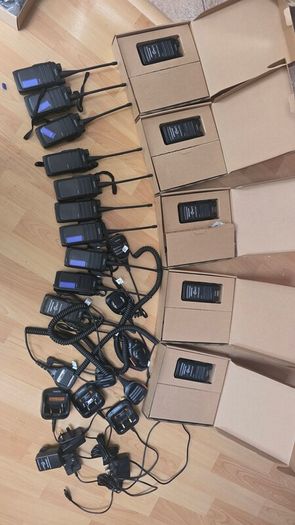

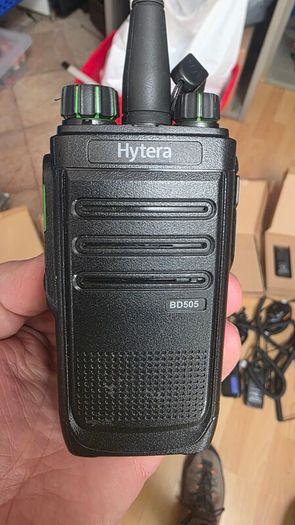

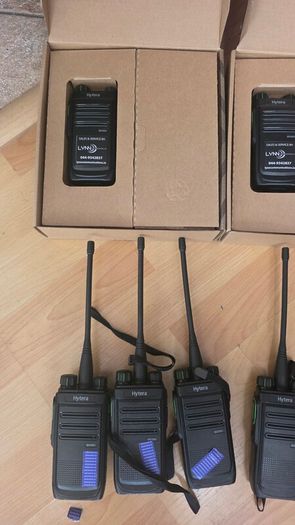

Hytera Bd505 Uhf (x15)

15 radios in total.
5 still boxed never used

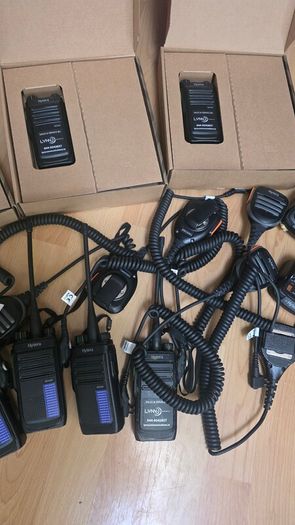

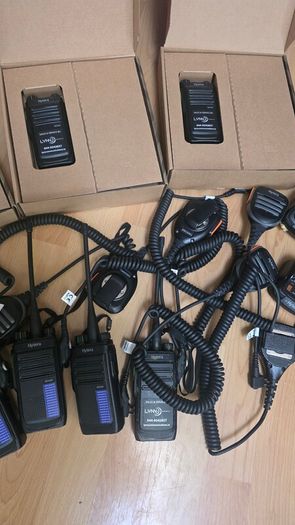

5 remote mics

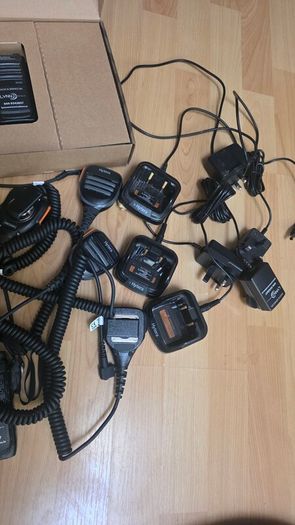

10 chargers
All units are programmed with one channel (licence required)
Will not sell separately
Free delivery to ROI or NI address

Key General Specifications

​Frequency Range: UHF 400 – 470 MHz

​Operating Modes: DMR Tier II Digital and Analogue (with Auto-Detect mode switching)

​RF Power Output: High: 4W / Low: 1W (Switchable)

​Channel Capacity: 48 channels (3 zones of 16 channels each)

​Channel Spacing: 12.5 kHz / 25 kHz

​Digital Protocol: ETSI-TS102 361-1, -2, -3

​Vocoder Type: AMBE++

​Physical Specs

​Dimensions (H × W × D): 108 \times 54 \times 28\text{ mm} (excluding antenna)

​Weight: ~240g (including standard antenna and BL1506 battery)

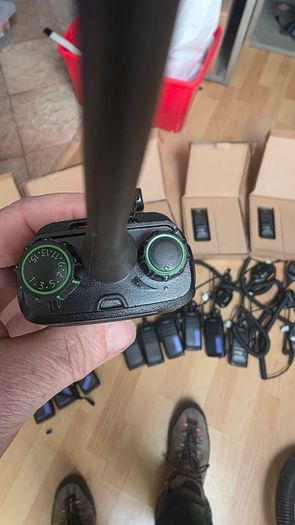

​Display / Keypad: None (Knob selector with voice/channel announcement)

​Programmable Keys: 1 custom side button

​Battery & Environmental Rating

​Standard Battery: 1500 mAh Li-Ion (BL1506)

​Battery Life (5/5/90 duty cycle):

​Digital Mode: ~16 hours

​Analogue Mode: ~12 hours

​Ingress Protection: IP54 (Dust protected & splash resistant)

​Durability Standard: MIL-STD-810 C/D/E/F/G (Shock, vibration, temperature extremes)

​Operating Temperature: -30^\circ\text{C} to +60^\circ\text{C}
