HiLook by Hikvision HD PTZ-T4215I-D (E) 2MP

Brand new, boxed.

Four-inch 2 MP camera with pan, tilt and zoom (15x) ability
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
1920 × 1080
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed
PAL: 1/1 s to 1/10,000 s

NTSC: 1/1 s to 1/10,000 s

Day & Night
IR cut filter
Zoom
15× optical, 16 × digital
Lens
Focal Length
5 mm to 75 mm, 15 × optical
FOV
Horizontal FOV: 53.8° to 4.0° (wide to tele)
Focus
Auto, semi-auto, manual
Aperture
F1.6 to F3.5
Zoom Speed
Approx. 2.4 s (optical, wide to tele)
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 100 m
PTZ
Movement Range (Pan)
360° endless
Movement Range (Tilt)
-15° to 90° (auto flip)
Pan Speed
Pan manual speed: 0.1° to 80°/s

Pan preset speed: 80°/s

Tilt Speed
Tilt manual speed: 0.1° to 80°/s

Tilt preset speed: 80°/s

Proportional Pan
Rotation speed can be adjusted automatically according to zoom multiples
Presets
256
Preset Freezing
Yes
Patrol Scan
10 patrols, up to 32 presets for each patrol
Pattern Scan
5 patterns, record time over 10 minutes for each scan
Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display
Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory
Yes
Video
Frame Rate
50 Hz: 25 fps @(1920 × 1080)

60 Hz: 30 fps @(1920 × 1080)

Network
Protocols
UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings
AGC, white balance
Wide Dynamic Range (WDR)
≥ 120 dB
Image Stabilization
EIS
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
8 programmable privacy masks
Regional Focus
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485
Half-duplex mode

Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
Power
12 VDC, max. 20 W (IR: 7 W)
Dimension

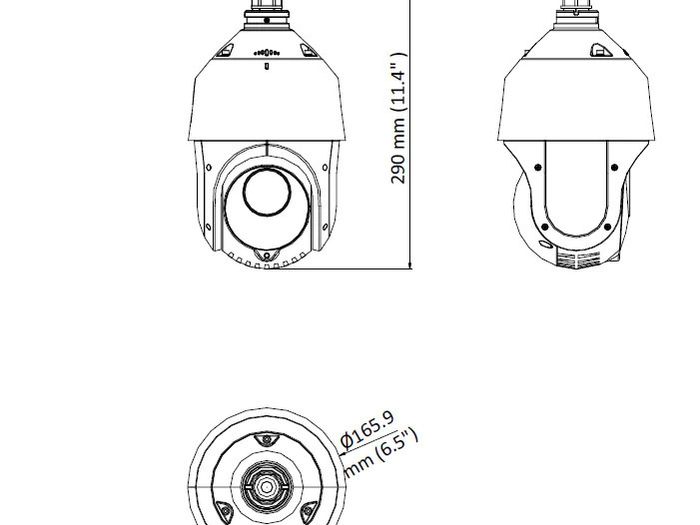

Ø 165.9 mm × 290 mm (Ø 6.5" × 11.4")
Weight
Approx. 2 kg (4.41 lb.)
Operating Condition
-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language
English
Approval
Protection
IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
