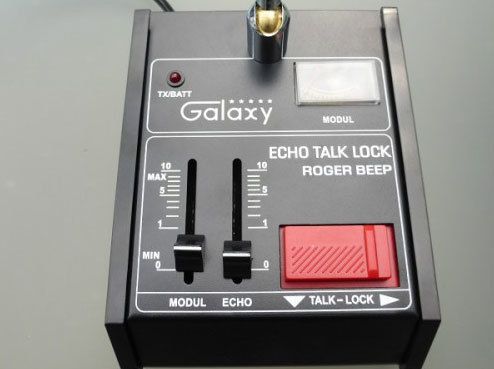

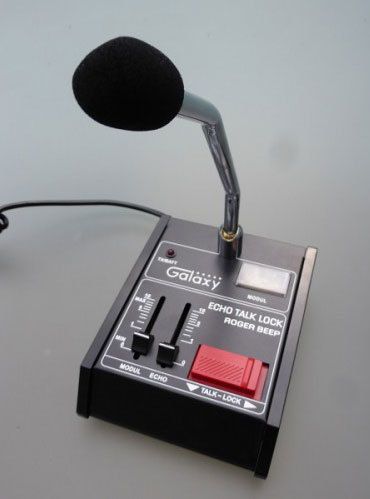

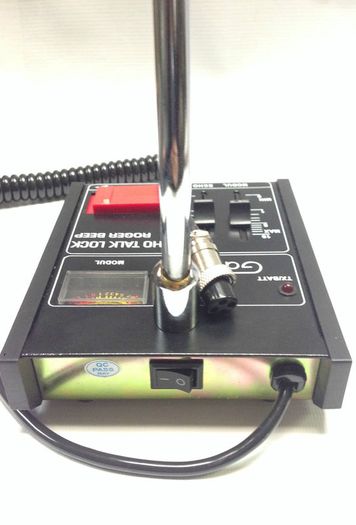

Galaxy Base CB Radio Microphone/Echo Master

This microphone is highly sought after as CBer's ungrade their original hand held CB radio microphone to a desk based option like the Galaxy.

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• Power Base Microphone
• Echo Time and Depth Control
• 1 VU-Meter
• Modulator Meter and TX LED
• Press to Talk with Lock
• Classic Echomaster Roger Beep
• Type of Microphone: Electret
• Sensitivity: -30 dB
• Output Level: From 0 Volt to 1.4 Volt
• Frequency Response: 200 - 300 Hz
• Output Impedance: 1K Ohm
• Load Impedance: 50 Ohm - 100K Ohm
• Roger Beep TX Time: 1.2 Sec. approx
• Current Drain: 8 mA (TX)
• Power Supply: One 9 Volt 6F22 alkaline battery
• Battery Life: Over 120 hours

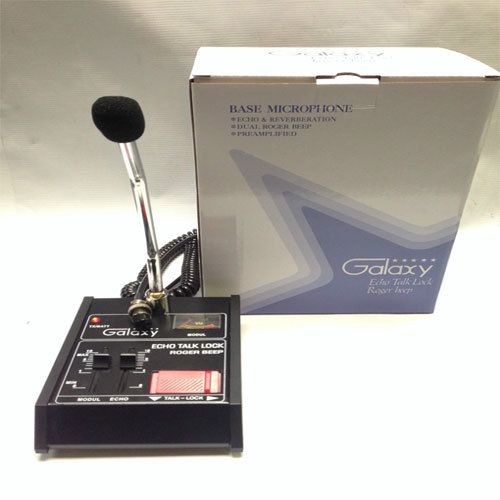

PACKING INCLUDES:

1 Pc of ECHOMASTER

WIRING OF MIC CABLE:

White = Audio
Red = Transmit
Yellow = Receive
(Black = Receive)
Shield = Ground

Youtube Product Overview:
https://www.youtube.com/watch?v=UVkTZlvQRKA&t=3s


Purchase Direct From Our Website: www.scorpiontechnology.ie
