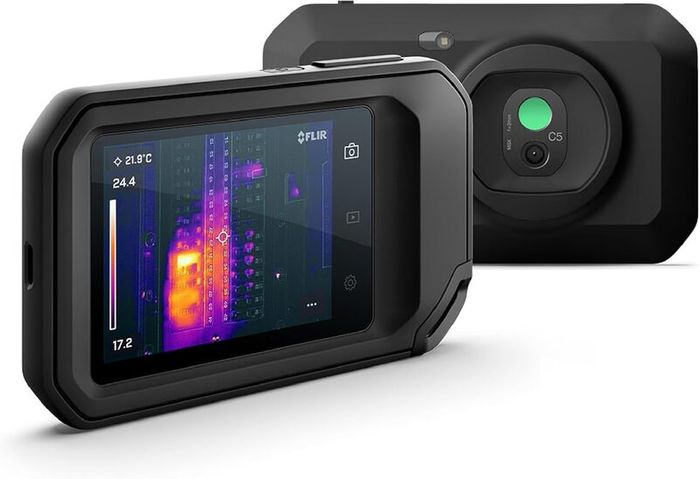

Flir C5 Thermal Camera

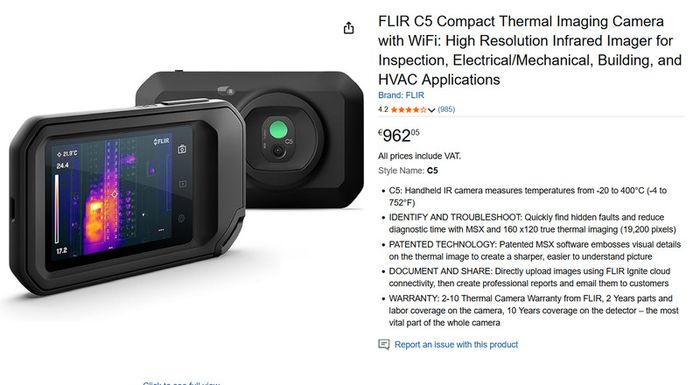

€962 on Amazon.ie
https://www.amazon.ie/FLIR-C5-Compact-Thermal-Imaging/dp/B0892MZZT1?th=1

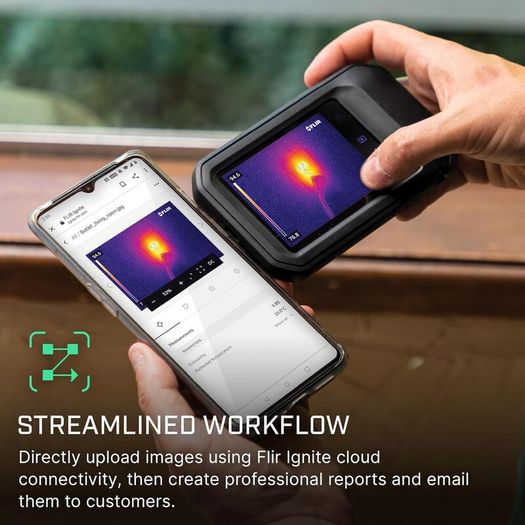

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
Imaging & Optical
Color Palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Digital Camera 5 MP
FLIR Screen-EST Mode No
Focus Focus free

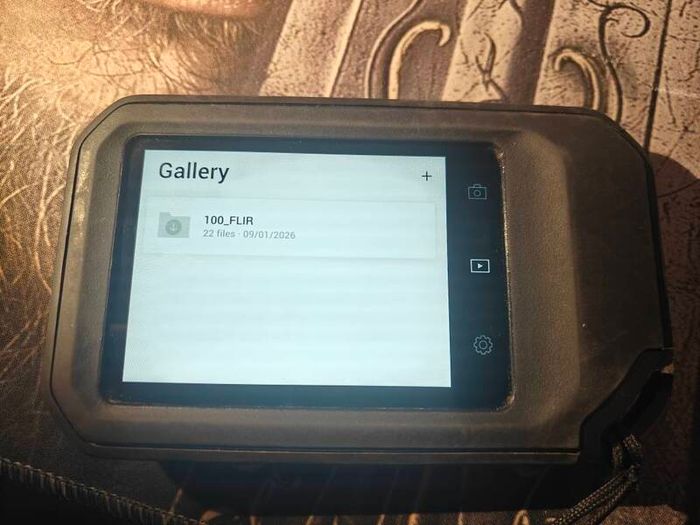

Gallery Thumbnails and custom folder structure
Image Frequency 8.7 Hz

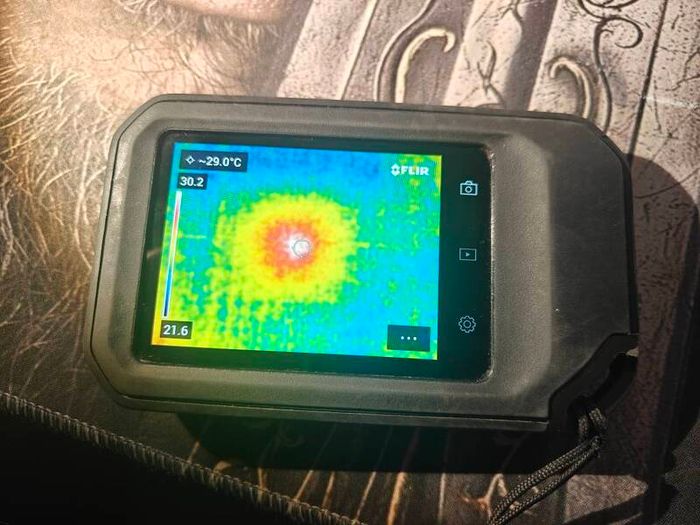

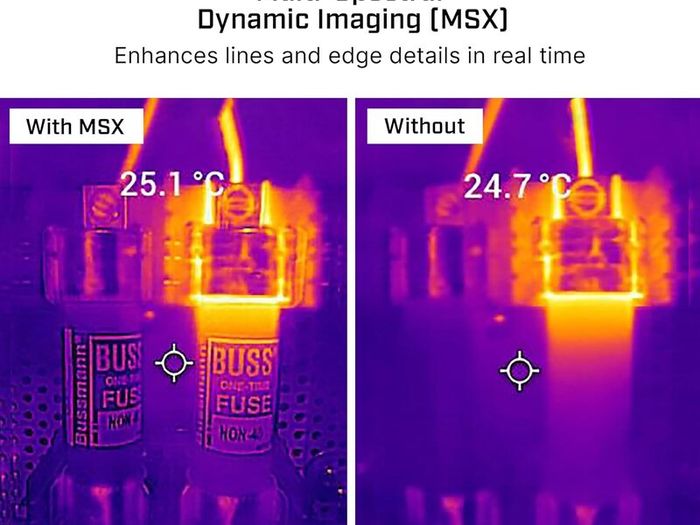

Image Modes Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range 8 to 14 µm
Measurement & Analysis
Accuracy At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%

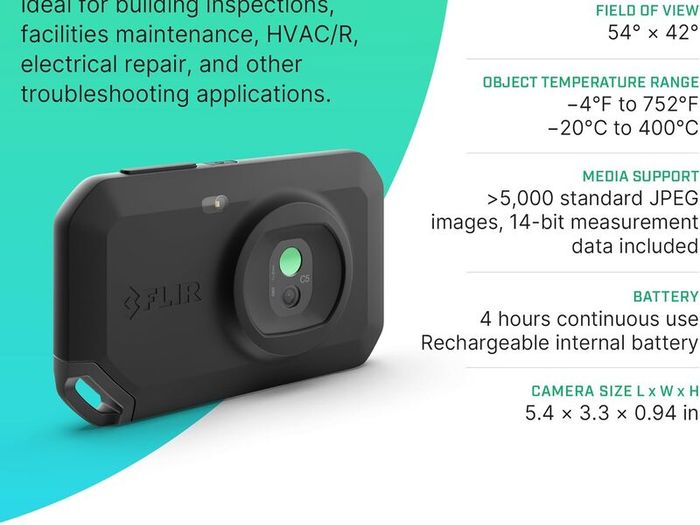

Camera size (L x W x H) 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements correction Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range -20 to 400°C (-4 to 752°F)
Thermal Sensitivity <70 mK
User Interface
Touchscreen Capacitive touch
Communication & Data Storage
Bluetooth PAN
File Formats Standard JPEG, 14-bit measurement data included
Image Storage >5000 images
Storage Media Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
USB USB 2.0, Type-C connector
WiFi 802.11 a/ac/b/g/n (2.4 and 5 GHz)
Power
Battery operating time 4 hours
Battery Type Rechargeable built-in Lithium ion battery
Charging system USB-C (1 A)
Charging Time 2 hours
External Power Operation 5 V, USB-C
Environmental & Certifications
Drop test 2 m (6.6 ft)

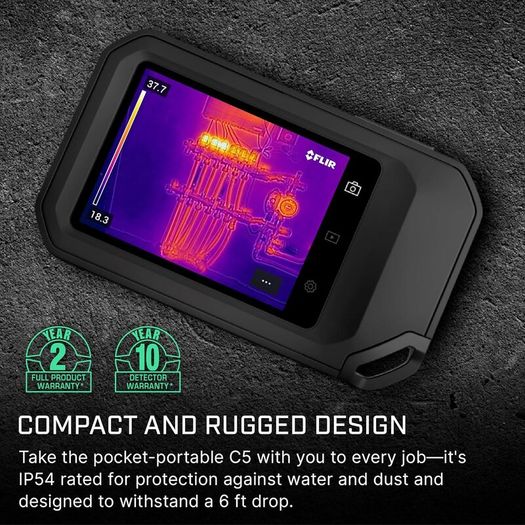

Encapsulation Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range -10 to 50°C (14 to 122°F)
Storage Temperature Range -40 to 70°C (-40 to 158°F)
Tripod Mounting UNC ¼"-20 (built-in)
