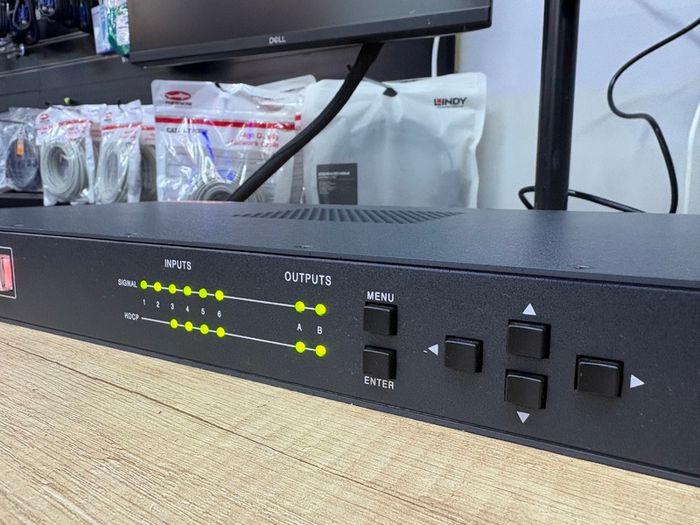

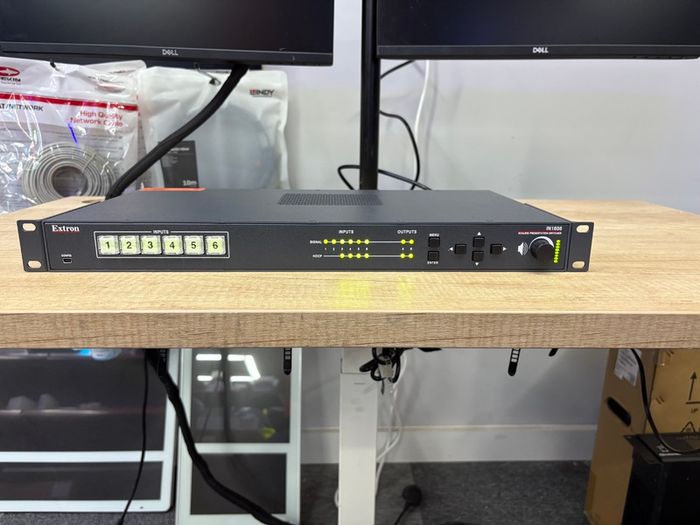

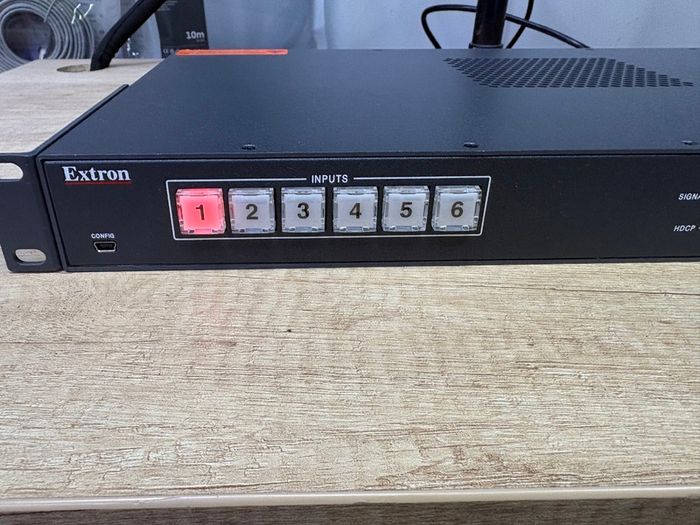

Extron IN1606 Switcher

The Extron IN1606 is an HDCP-compliant, six-input scaling presentation switcher designed for professional AV systems such as boardrooms and classrooms.

It integrates both digital and analog video and audio sources and features an advanced video scaling engine for optimal image quality across various displays.



Key Features and Specifications

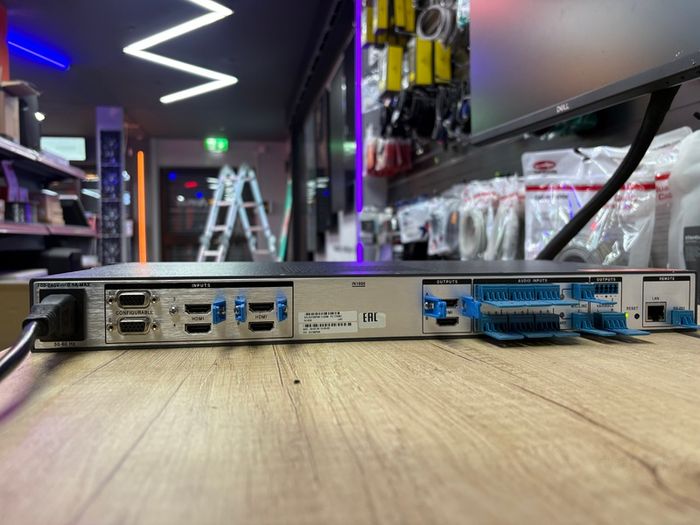

Inputs: Four HDMI inputs and two universal analog video inputs (accepts RGB, component, S-video, or composite video).
Outputs: Two simultaneous HDMI outputs, allowing a single source signal to be displayed on two screens.
Video Scaling: Features an advanced scaling engine with 30-bit processing to scale incoming signals to a common output resolution up to 1920x1200, including 1080p/60 and 2K.
Audio Capabilities: Includes advanced audio features like HDMI audio embedding and de-embedding, six stereo inputs, and two mic/line inputs with 48V phantom power and ducking capabilities.
HDCP Compliance: Employs Extron's exclusive Key Minder® and EDID Minder® technologies to ensure quick, reliable switching.

Control Options: Offers flexible control options including Ethernet (with built-in web pages for configuration), RS-232, and a front panel USB configuration port.

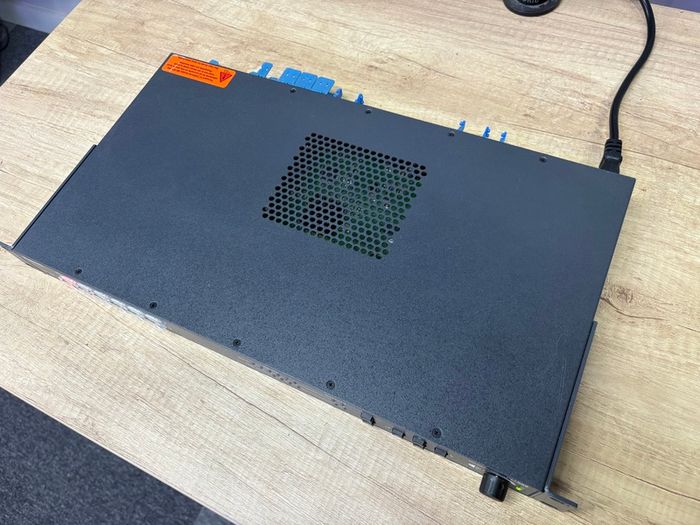

Form Factor: Housed in a 1U, full rack width metal enclosure for easy integration into standard AV racks.

Pricing
The Manufacturer's Suggested Retail Price is around €2500
For more information and detailed specifications, you can visit the official Extron product page.
