ESP32-S3 4.0 Inch Smart Display for Arduino LVGL WiFi Bluetooth Development Board LCD TFT Module Capacitive Module

Features:
1. Dual-core ESP32-S3 main control, integrated Wi-Fi and Bluetooth, 240MHz main frequency, strong performance
2. 4.0-inch color screen, 16BIT RGB display, colorful and delicate
3. 480x480 high resolution, capacitive touch screen, smooth and accurate operation
4. Built-in 16MB Flash and 8M PSRAM, support TF card expansion storage space
5. Provide library functions and sample programs, rapid secondary development is convenient

Parameter：
Product Name: ESP32 S3 Development Board
Main control chip: ESP32-S3
Memory configuration:
SRAM: 512KB
ROM: 384KB
PSRAM: 8MB
Flash: 16MB
Driver chip: ST7701
Display size: 4 inch
Resolution: 480*480 pixels
Supply Voltage: 5V
Supply Current: 260mA
Interface: Type-C interface
Operating Temperature: -20℃~70
Storage temperature: -30℃~80
Touch function: capacitive touch screen
Expansion interface: TF card slot, IO port

Description:

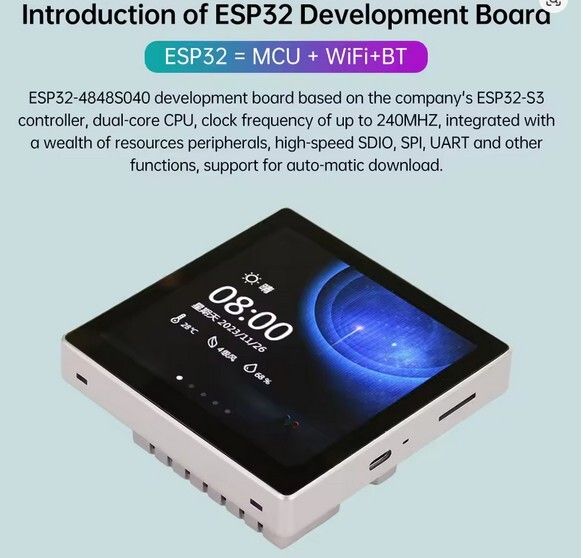

The LCD module adopts ESP32-S3 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency up to 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash capacity of 16MB, the display resolution is 480*480, capacitive touch. The module includes LCD display, backlight control circuit, touch screen control circuit. The module has reserved TF card interface and IO port, and supports development in ESP IDE, Micropython and Mixly.

Package include:
Development board x 1
Accessories x 1
