Dowshu Wireless Access Control System with Double Barrel Lock Indoor/Outdoor IP66

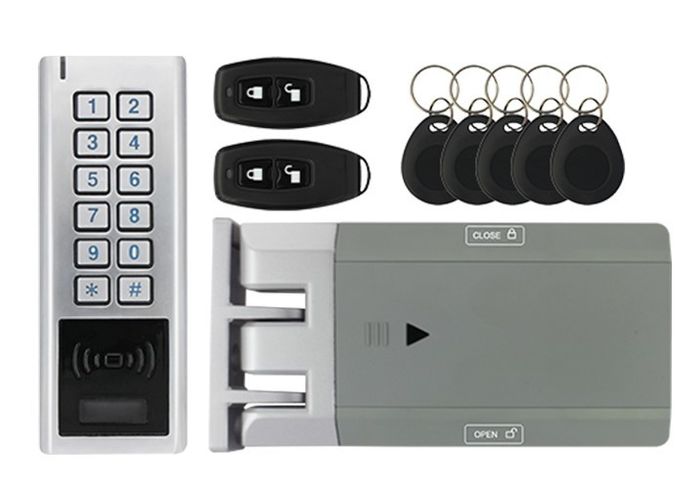

The Dowshu DD5 is an IP 66 Rated Wireless smart lock kit for business and home use, it includes Wireless Keypad plus Wireless Lock, 2pcs Remote Transmitters and 5pcs RFID Tags

Complete Wireless Door Lock System
Keyless: Keypad-Fobs, Remote Control
Double Locking
Suitable for Double or Single Doors
Double Locking
2 Remote Control
1 Exit Button
2 Piece Bolt lock
50 metres Wireless Range
IP66 Keypad
3M, Adhesive Fixing Seals
Fixing Screws

Intelligent Wireless Gate Door/Lock with Remote Control, Keypad and Exit Button for Keyless Entry Door Locks providing greater and more convenient Security. The Dowshu DD5 is suitable for double doors or for doors where twin locking is required. The system is complete with a wireless lock.

433MHz Rolling Code of the encryption algorithm and the split design guarantee higher-secure.

433MHz Rolling Code technology

500PIN/card users

4~8 digits PIN, 125KHz EM card

Communication distance: 50m Max

Open/Close by Keypad, transmitter, or touch the lock

Complete Wireless Door Lock System
Keyless: Keypad-Fobs, Remote Control
Double Locking
Suitable for Double or single Doors
Double Locking
2 Remote Control
1 Exit Button
2 Piece Bolt lock
50 metres Wireless Range
IP66 Keypad
3M, Adhesive Fixing Seals
Fixing Screws

Specifications
User Capacity: 500
PIN Length: 4-8 Digits
Card Type: 125KHz EM Card


Operating Voltage
Wireless Keypad: 3 x AAA batteries
Wireless Lock: 2 x AA batteries
Remote Transmitter: 1x 2032 Lithium battery
Idle Current All items < 10uA


Working Current
Wireless Keypad: < 50mA
Wireless Lock: < 60mA
Remote Transmitter: < 3mA
Communication Frequency: 433MHz
Communication Distance: 50m Maximum

Operating Temperature
Wireless Keypad: -40°C~+60°C (-40°F~+140°F)
Wireless Lock: -20°C~+60°C (-4°F~+140°F)
Operating Humidity: 0%~86%RH


Physical
Wireless Lock: Zinc-Alloy
Wireless Keypad: ABS
Remote Transmitter: ABS


Dimensions
Wireless Keypad: L135 x W54 x D19(mm)
Wireless Lock: L150 x W83 x D38(mm)
Remote Transmitter: L62 x W30 x D11.5(mm)


Unit Weight
Wireless Keypad: 90g
Wireless Lock: 800g
Remote Transmitter: 25g/pc
