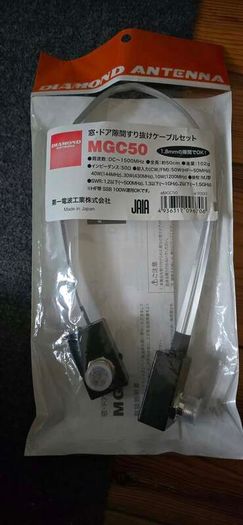

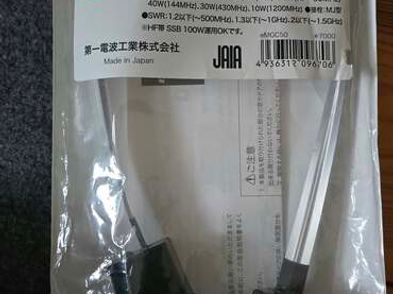

Diamond MGC50 - Through Window Cable

Diamond MGC50 - Through Window Cable Diamond MGC50 - Through Window Cable Other Electronics

Diamond MGC50 - Through Window Cable

The Diamond MGC50 window/door feed-through jumper allows you to get the antenna coax into the radio room without drilling holes in the wall or leaving a window/door open. Close the window and screen freely without damaging the coax!

Specifications:

Frequency Range: DC-1500 MHz
Connectors: SO-239
Length: 19.6 inches
Max Power: HF 150W PEP (50W CW), VHF: 40W FM, UHF: 30W FM, 900MHz - 1.3GHz: 10W FM
VSWR: <500MHz 1.2:1, <1000MHz 1.3:1, <1500MHz 2:1
Loss: 144MHz 0.3dB, 440MHz 0.6dB, 1200MHz 1.6dB
Impedance: 50 Ohm
