DC 5V-12V 12V 30A Dual Channel H-bridge DC Motor

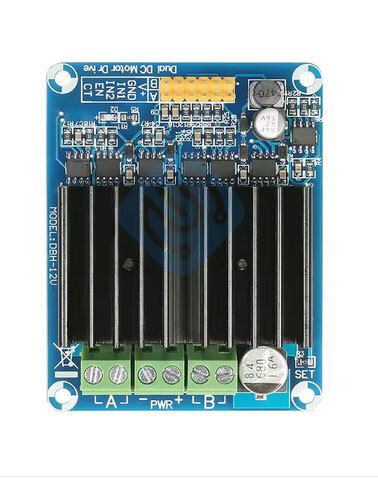

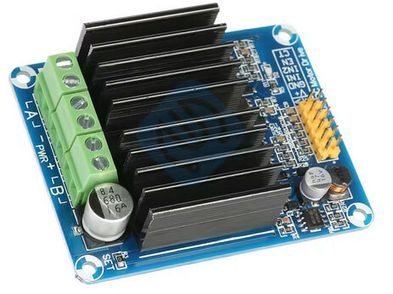

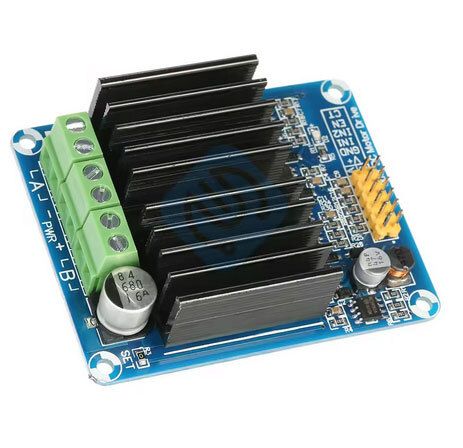

DC 5V-12V 12V 30A Dual Channel H-bridge DC Motor Controller Driver Reversible PWM Speed Control Motor DBH-12V

Features:

• Compact size, light weight.
• Apply to control ordinary DC motor, smart car motor, etc.
• Reversible control and PWM speed control.
• Design of high-speed switch.
• Ultra low internal resistance, low heat.

Technical Specifications:

• Operating Voltage: DC5V-12V
• Standby Current: <30mA ± 5mA
• Working Current: 0A-30A (Max) / each channel.
• PWM mode: Duty cycle: 0-98%.
• Frequency: General Motors: 16 kHz; Coreless Motor: 80 kHz; TEC: 500Hz-80kHz.
• Input Voltage Level: Low: 0-0.5 V; High: 2.5 V-13 V (typical unit level: 3.3 V, 5 V, 12 V)
• Current Sampling: CT Pin Output Voltage (V) = current (A) * 0155
• Item size: 6.2 x 5.3 x 1.8cm

Package:

• 1 x 30A Motor Drive Controller
