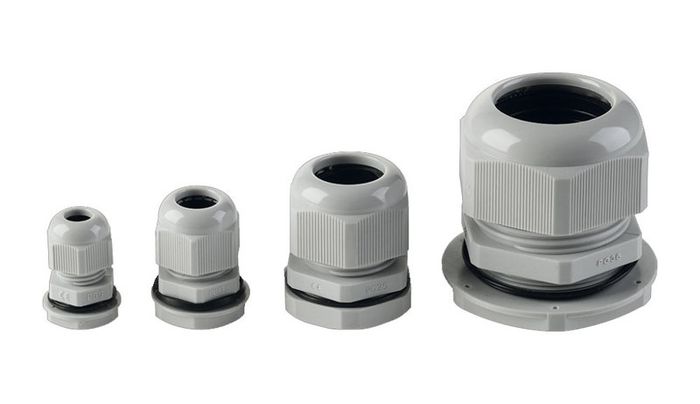

Cable Glands M16, M20, M25, M32

Description of Cable Glands

Top Quality M16 Cable Glands
Weatherproof Rating: IP68
16mm, Cable Glands
Suitable For 4-8mm Cables
Colour: Grey
Quantity: 1
Material: Nylon
Complies With All Relevant Electrical Safety Standards
CC 85369090 7g N

M20 Cable Glands
Standard: PG13.5
Outter Dia: 20.4mm
Inner Dia: 19.06
Threads Per Inch: 18
Suit Cable Size: 6-12mm
Colour: Grey
Rubber Seal: Yes
Material: Hard Plastic
Thread: M20
CE Approval: Yes
CC 85369090 10g N

M25 Cable Glands
Standard: PG21
Outter Dia: 28.3mm
Inner Dia: 26.78mm
Threads Per Inch: 16
Suit Cable Size: 13-18mm
Colour: Grey
Rubber Seal: Yes
Material: Hard Plastic
Thread: M25
CE Approval: Yes
CC 85369090 21g N

Top Quality M32 Cable Glands
Weatherproof Rating: IP68
32mm Cable Glands
Suitable For 16-21mm Cables
Colour: Grey
Quantity: 1
Material: Nylon
Complies With All Relevant Electrical Safety Standards
CC 85369090 25g N

Uses of Cable Glands

Used to achieve a water and dust proof seal around a cable going into a junction box
Especially useful when being used outdoors

Advantages of Cable Glands

Gives a better dust and waterproof seal than that offered by rubber bungs
Easy to Install
Relatively inexpenisve

the M25 Cable Gland fits a PL259 perfectly so if you need to remove cables quickly, you will not have to de-solder the PL259 from your coaxial cable before you remove the cable. The M25 hole is large enough to fit a PL259 connector.

Please let us know which size you require when ordering.
