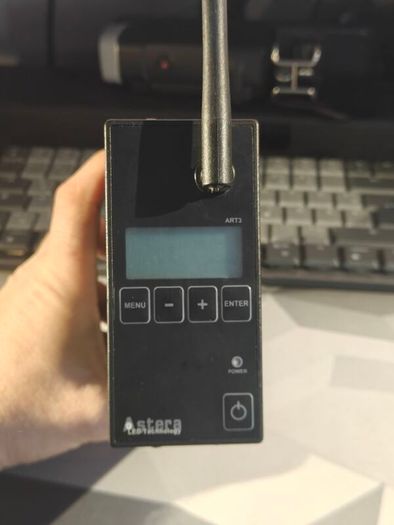

Astera Wireless LED DMX Transmitter ART3

The Wireless DMX Receiver & Transmitter is a versatile product that can be used in several ways to form large wireless lighting setups. Use it as a plain W-DMX transmitter to bridge the gap between a DMX controller and its lamps. Connect it to third party DMX lamps and use the Astera RF Remote Control to control them. Connect it to a DMX light control system so it can control color and intensity of any Astera lamp conveniently from your DMX control board.

TECHNICAL SPECIFICATIONS

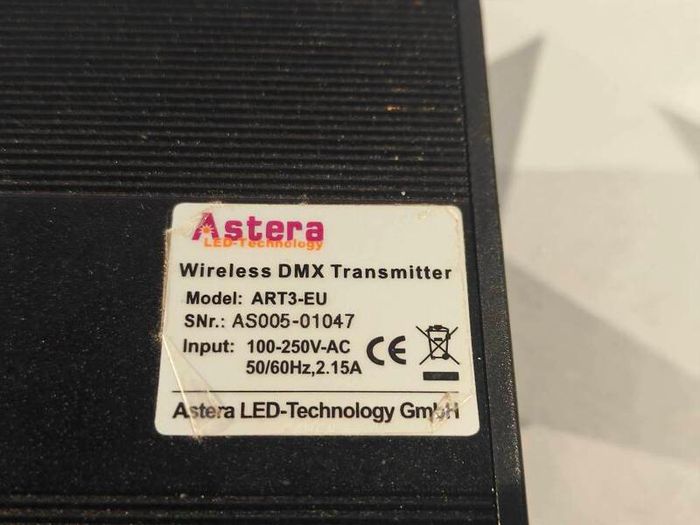

Working Voltage: Input-110-240V, 50/60Hz
Battery: n/a

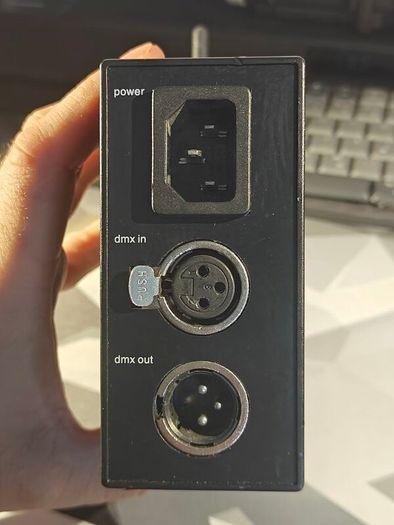

Output Socket: 2 x XLR 3-pole (in & out)
DMX Capability: DMX-512 in/out
Channels: 512
Wireless Module: 868MHz receiver with up to 300m range (USA version: 902-928MHz / 330yd)
Range: Up to 300m (330yd)

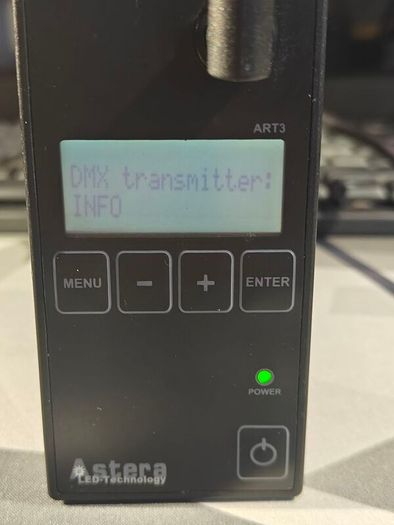

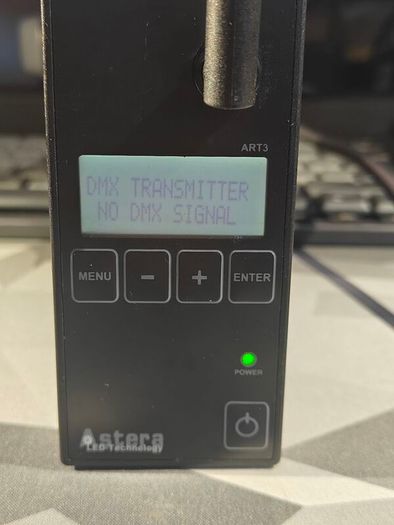

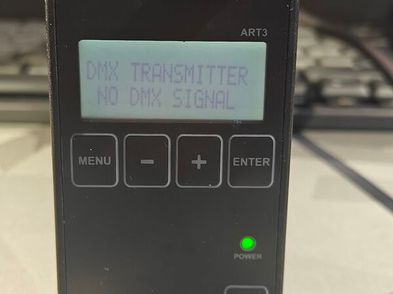

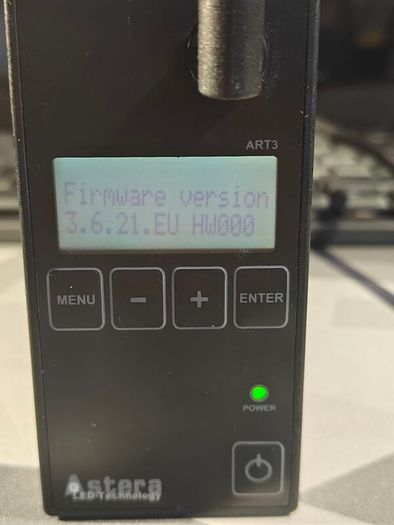

Control Pad: 5 multi-functional buttons and LCD display for basic operation
Environment: Indoor and dry Outdoor
Unit Size: L160mm x W105mm x H50mm (L6.3” x W4.1” x H2.0”)
Weight: 0.850kg (1.9lb)
Housing: Aluminum
Modes: Sending, receiving, transmitting
Functions: Group addressing, Chain addressing, Type addressing, Serial Number addressing
Included Accessories: Power Cord for the integrated power supply, loop-screws for truss attachment

SUITABLE CONTROLLERS

ARC2

DMX controllers

SUITABLE LIGHTS

AL1

AL3

AL5

AL6

AL7

AL7-W

AL9
