Amplitec coax switches of the digital SW-3000

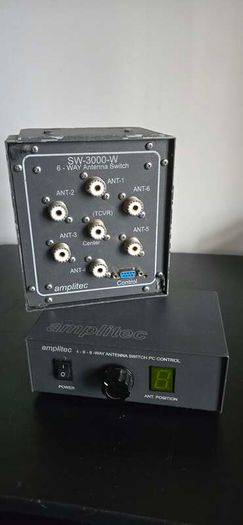

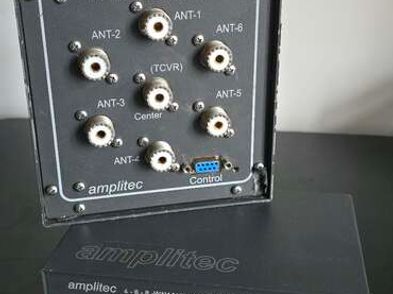

he Amplitec SW3000 6-way coax switch with controller is a versatile device designed for amateur radio enthusiasts seeking to manage multiple antennas efficiently.

The Amplitec 6-way coax is designed to facilitate seamless switching between antennas, enhancing operational flexibility. All via one run of coax from the shack. These switches can be operated manually via a control unit.

A notable feature of the SW3000 series is its robust power-handling capabilities. For frequencies between 100 kHz and 30 MHz, the switches can handle up to 3000W, while at 50 MHz, they support up to 2000W, This makes them suitable for high-power applications across a broad frequency range.

In terms of build quality, the switches are equipped with SCHRACK relays and weigh approximately 2 kg, indicating a solid and durable construction.

Overall, the Amplitec SW3000 series coaxial switches with controller are a robust and versatile solution for managing multiple antennas, suitable for both amateur and professional radio enthusiasts.

The switch is supplied with the wiring diagram to make up the control lead from the switch to the switch controller
