Altronix AL600XB220 power supply charger 12v 24v uninterrupted ups

AL600XB220 power supply/charger uninterrupted ups
brand new, input 220v output 12 or 24v selectable.
If 24v selected 2 batteries have to be connected in series for charging.

Input

Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A.
Input fuse rated @ 5A/250V.

Output

12VDC or 24VDC selectable output.
6A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input, DC output and BAT trouble.

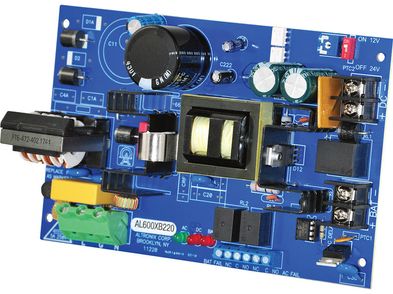

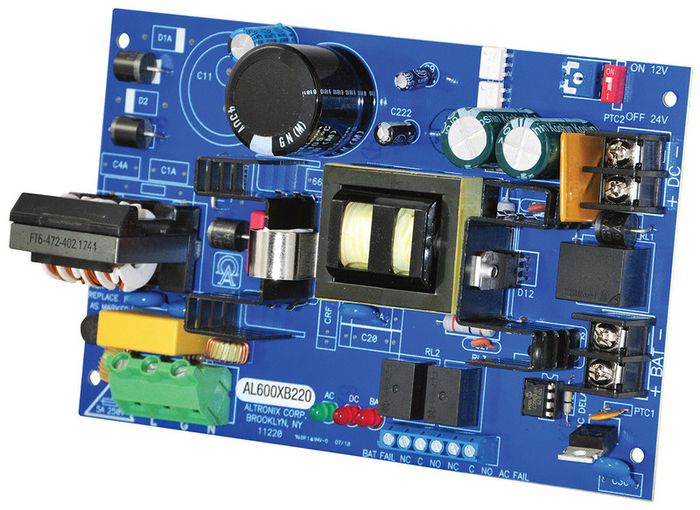

Altronix AL600XB220 power supply/charger converts a 220VAC, 50/60Hz input into a
single 12VDC or 24VDC output. It also offers a suite of features that includes AC fail
supervision, battery presence, and low battery supervision.
