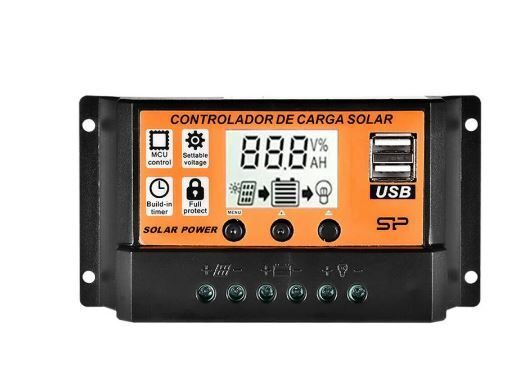

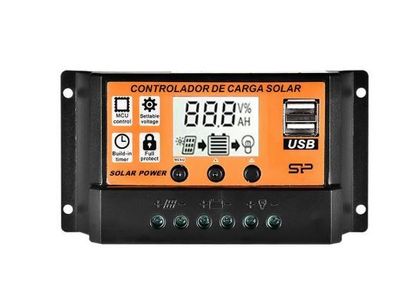

40A Solar Charge MPPT/PMW Solar Charge Controller 12V and 24V Auto Battery Charger

Shipping Nationwide 1 to 2 working days
Collection to be arranged
Cash on Delivery COD (Pay on Delivery )
Condition: 100% New in Box

Item:533


Description:

-Advanced maximum power point tracking technology (MPPT/PWM), the efficiency is not less than 99.5%. High-quality components improve system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.

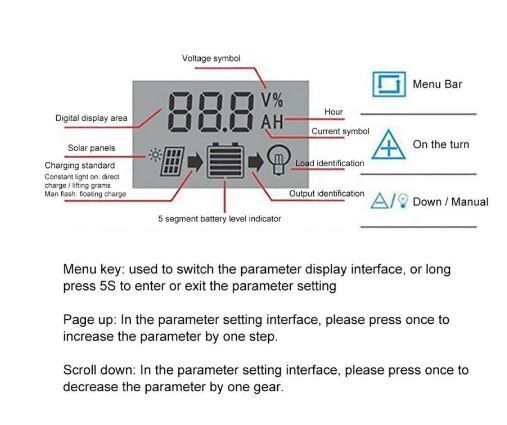

- Large-screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control delay control; adjustable charging and discharging parameters, with shutdown memory and other functions.

- Dual USB output, the maximum current is 2.5A. Equipped with all necessary devices, system control parameters are adjustable and easy to set and operate. Built-in overheating, overcurrent, short circuit, open circuit, fault clearing, automatic recovery controller. Two-way MOS tube anti-flow circuit, high power charging mode, ultra-heat.

-Built-in short circuit, open circuit, reverse connection, overload. Reverse current, low calorific, with self-recovery function, will not damage the controller.

-Real-time display of temperature, charging current and discharging current. Current MPPT autofocus charging tracking, high charging efficiency, charging process does not stop detection, two-way focus tracking.



Specifications:

Name: LCD screen solar controller
Voltage: DC 12V/24V
display: LCD Screen
Self-consumption: <10ma
Overload: 14.4V/28.8V
Overload Float Charge: 13.7v/27.4V
voltage: 12.6V/25.2V
Over discharge: 10.7v/21.4V
Over discharge recovery: 12.6V/25.2V
Dual USB output: 5V/2A (cell phone charging, iPad, etc.)
Working temperature: -35--60 ℃
12v fits 18v solar panel, 24v fits 36V solar panel
Matching 12.0-volt lead acid battery
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cutoff voltage is set to: 10.7
Matching 12.8-volt lithium iron phosphate battery
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cutoff voltage is set to: 11.0
Matching 11.1-volt lithium battery
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cutoff voltage is set to: 9.6



package included:

1x solar panels battery charge controller
1x user manual



Notes: notes:

1. The charge regulator is only suitable for lead-acid batteries: open, AGM, gel, not suitable for nickel hydride, lithium, lions or other batteries.

2. This controller can only use photovoltaic panels as charging power. Do not use DC or other power as charging power.

3. The LCD display has an error of 0.2V-0.3V, but this is normal

4. Old batteries can be degraded to capacity after hundreds of cycles, easily dropping lower than 8V, which results in the controller will shut down (the LCD screen becomes totally "dead").

5. Indoor use only: The working temperature of this controller is from -35°C to 60°C, during hot sunny days, the outdoor temperature can go up to 60-75°C. Please keep the controller in a cool and well-ventilated place to maintain good heat dissipation.

The minute is adjustable when the output is off, which is more convenient (no adjustment when marketing is only available).


PV system power Description:


10a/20a/30a/40a/50a/60a/70a/80a/90/100a battery 12V photovoltaic system: the power is respectively 100-1000w


10a/20a/30a/40a/50a/60a/70a/80a/90/100a battery 24V photovoltaic system: the power is respectively 200-2000w

No offers under the asking price
