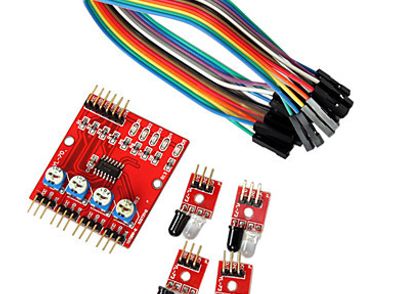

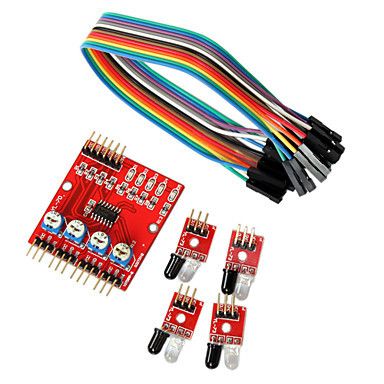

4-Way Infrared Tracing Module for Arduino

Specifications:
1.Operating Voltage : DC 3.3V-5V
2.Operating Current : try to choose more than 1A power supply
3.Working temperature : -10 ℃ - +50 ℃
4.Install Aperture :. M3 screws
5.Detection range :. 1mm to 60 CM adjustable, the closer the more stable performance , white reflective distances .

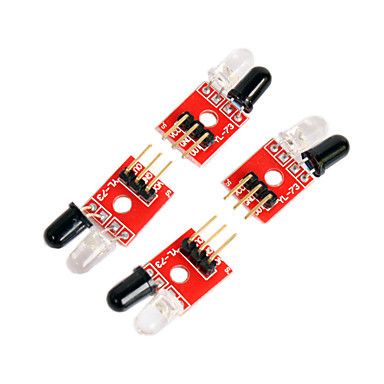

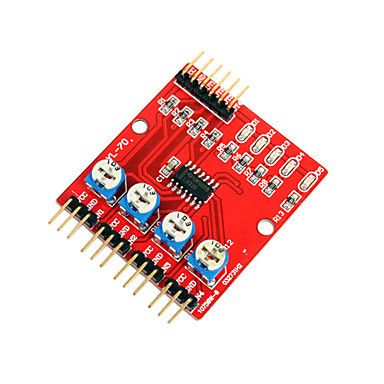

6.size : the control panel 42mm × 38mm × 12mm ，Small plates forward 25mm × 12mm × 12mm

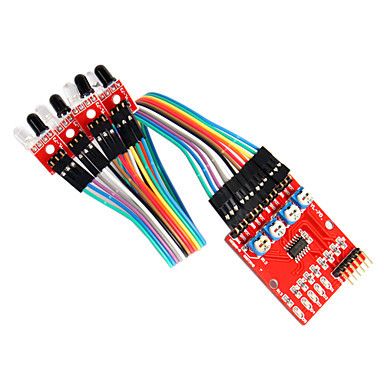

7.Output Interface : 6 -wire interface ( 1234 4 -way signal output, + positive power - power that is negative ground )
8.Output signal : TTL level ( can be directly connected microcontroller I / # 0 , is reflected back to the sensor sensing infrared light , the red light is on, the output low ; when no infrared light , the light is not bright, high power output level. )
Dimensions: (4.2 cm x 3.8 cm x 1.2 cm)

Applications:

1 Intelligent car or a robot hunt(Including the black and white wires), Walking paths along the black line,follow line;
2 Intelligent car to avoid the cliff , anti- fall;
3 Intelligent car for obstacle avoidance.
