26213 Baofeng Radio UV-82 UV82 Dual PTT Walkie Talkie Optional 5W

FM Radio Walkie Talkie Baofeng UV-82 Dual PTT Two-way Vhf Uhf Amateur Radio Receiver UV82 Two Way Transmiter



High quality 100% brand new.



UV-82 series two-way radio are the newest styles by BAOFENG, it has multi-functions, such as dual band, dual display, dual

watch, its performances are excellent, the shape is fashionable, It has a good sales record in the communication market. It is

really a cost-effective LCD dual band two-way radio.

Features:

Output: 5W/1W.

Frequency Range: 136.00-174.00 MHz/400.00-520.00MHz.

Channel Step: 2.5/5/6.25/10/12.5/25KHz.

Double Launch Key Dual Band Dual Watch.

High & Low Power Switchover.

Battery Saving.

VOX Function.

Wide/Narrow Band Selection.

Auto-Back Light.

Dual Band Standby.

Time-out Timer (TOT).

50 CTCSS and 104 DCS Codes.

Voice Prompt.

ANI Code.

PC or Manual Program.

DTMF Code.

PTT-ID.

ATUO Keypad Lock.

Busy Channel Lock Function.

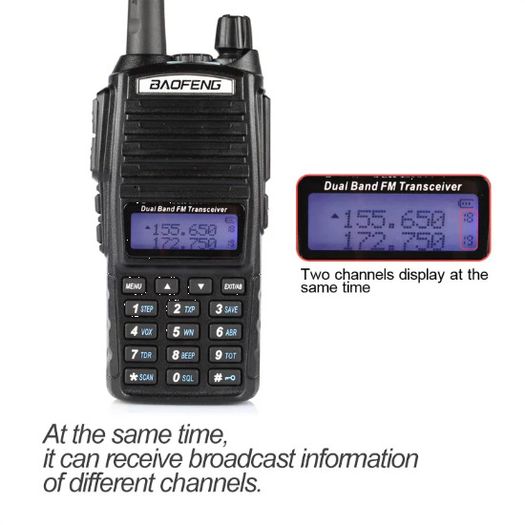

Dual Band, Dual Display and Dual Standby.

Emergency Alarm.

Priory Scanning Function.

Relay Forwarding Confirmed (1750Hz).

Low Battery Warning.

U/V Cross Band Dual Watch.

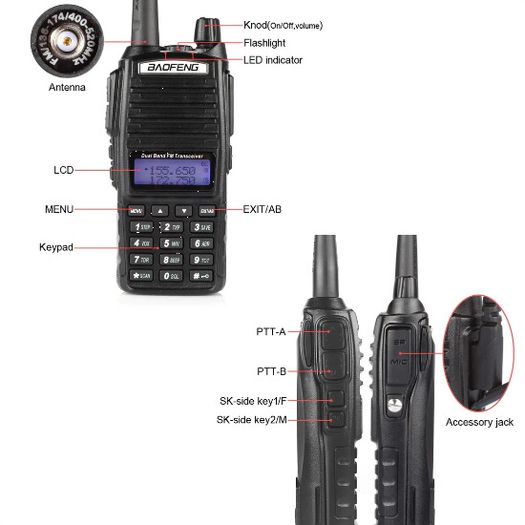

Double PTT Buttons.

Color: Black.

FM function



Specifications:

136-174MHZ and 400-520MHZ (TX/RX)

Channel No. 128CH

Frequency Stability plusmn2.5ppm

Antenna High gain DualBand antenna

Antenna Impedance 50Omega

Operating Voltage DC 7.4V

Mode of operation Simple or semi-duplex

Antenna : SMA -Female



Dimension(W x H x D) 132 x 60 x 35 mm (not included antenna)



Weight

238g(including battery, antenna)

Power adapter

Input: AC100-240V, 50-60Hz;

Output: DC10V/500mA;



Transmitter

Output power

5W / 1W (Max 5W)

Modulation Mode

16kPhiF3E / 11kPhiF3E

Maximum deviation

5kHz(Wide) / 2.5kHz(Narrow)

Spurious Radiation

7muW

Adjacent Ch. power

le-65dB(Wide) / le-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

le1.6A(5W)

CTCSS/DCS deviation

0.5plusmn0.1kHz(Wide) / 0.3plusmn0.1kHz(Narrow)

Intermediation sensitivity 8-12mv

Intermediation distortion le10%



Package included:

1 x BAOFENG UV-82.

1 x 7.4V Li-ion Battery Pack.

1 x Antenna

1 x Belt Clip.

1 x Hand Strap.

1 x AC Adapter.

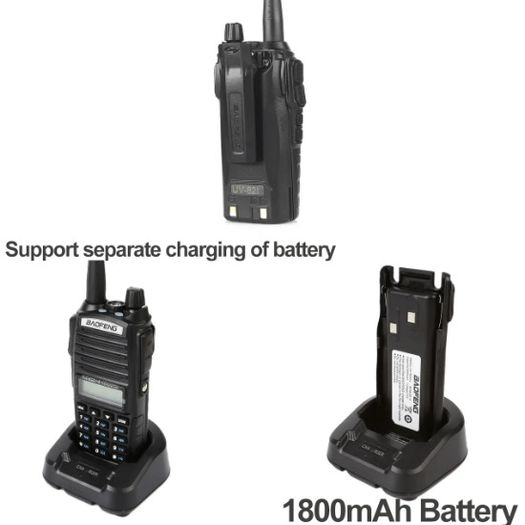

1 x Desktop Charger (100V~240V).

1 x User Manual.

All accessories are subject to the accessories option pictures , this is only standard parcel
