WURTH Thread die HSS DIN EN 22568 6g for metric ISO fine threads

WURTH Thread die HSS DIN EN 22568 for metric ISO fine threads.

Threaded die HSS DIN 13-2
THRDIE-HSS-DIN223-M14X1,25

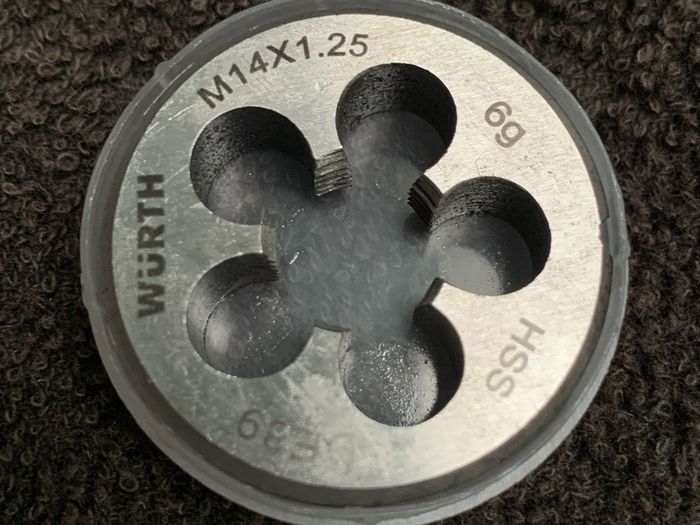

Round die in accordance with DIN EN 22568 in closed, pre-slotted design (shape B) for the production of metric ISO fine threads according to DIN 13 in steel up to 850 N/mm² strength and in cast iron.
Two-sided cut

Can be used on both sides
Threads can be cut in one process
Easy cutting and excellent chip removal in cutting direction
High edge retention



Instructions
The die is placed in the die holder at the height of the middle screw. The screws are tightened with a screwdriver. The die is placed vertically on the workpiece. Can be used on both sides. When cutting, sufficient cutting oil must be added. After two revolutions, the cut can be broken by briefly turning back.

Type description

For metric ISO fine thread DIN 13

Cutting material

HSS

Surface

Plain

Thread type

Metric fine thread

Form

B

Tolerance class

6g

Thread type x nominal diameter

MF14

Pitch

1.25 mm

Outer diameter

38 mm

Height

10 mm

Material to be processed

Steel, Cast iron
