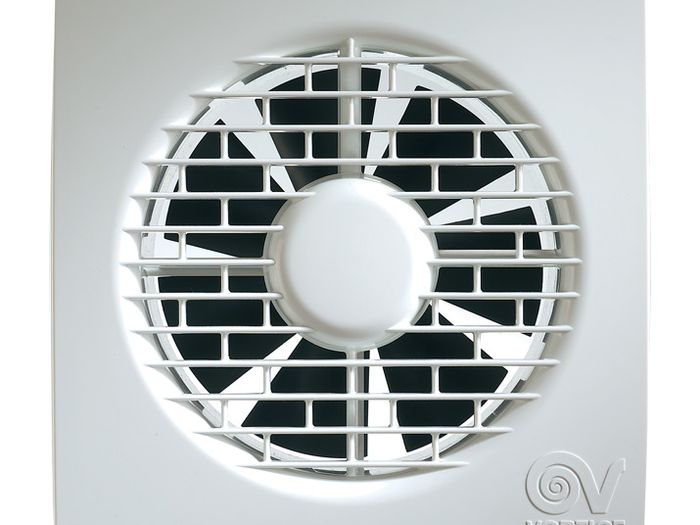

Wall Axial Extractor Fan 6"

6" Axial Wall Fan -Vortice

Fan- 75".

Fan+ Ducting (1 1/2 Meter Rigid) + External Grill - 109.50

Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Non-return damper fitted to outlet port.
• IMQ SAFETY and IMQ PERFORMANCE certifications.

Absorbed Current max (A)0,15
Absorbed Power max (W)28
Frequency (Hz)50
Insulation ClassII°
IPX4
Max ambient temperature for continuous operation (°C)50
Nominal Diameter (mm)150
Ø Discharge Hole (mm)156
Voltage (V)220-240
Weight (Kg)0,97
Delivery max (l/s)93
Delivery max (m³/h)335
Pressure max (mmH2O)6
Pressure max (Pa)59
RPM2100
Sound Pressure level Lp [dB (A)] 3m40,1

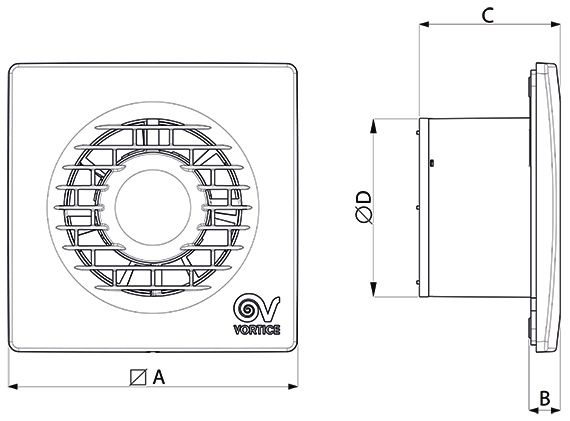

Size A (mm)214
Size B (mm)17
Size C (mm)96
Size D (mm)156
