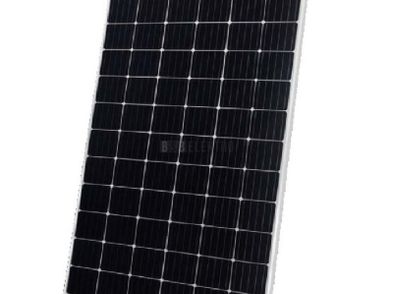

Solar panel 415W Monocristaline

HT-SAAE 415W Mono HC (HT54-18X-415)

Solar panel to generate your own electricity from sun energy.
Solar panel when used with batteries and inverter can be used to power TV, fridge, Lights, CCTV, shed lighting or yard lights, water pump, electric fence



This HT-SAAE 415W module offers features in line with other top panels currently available, including:

Monocrystalline Half-Cut Perc
Compact size: 1724mm × 1134mm × 35mm
9 Busbar Technology
Max module efficiency of 21.2%
PID Resistant
Certified to Withstand High Winds (2400 Pa)
Microcrack Resistant and Triple EL Tested
Fantastic LCOE (Levelised Cost of Entry)
25 Year Performance Warranty
25 Year Product Warranty – Well above industry standard


Module Type HT54-18X
Maximum Power(Pmax) 415W
Open Circuit Voltage(Voc) 37.48V
Short Circuit Current(Isc) 14.06A
Maximum Power Voltage(Vmp) 31.60V
Maximum Power Current(Imp) 13.14A
Module Efficiency 21.2%
Power Tolerance 0 ~ +5W
Maximum System Voltage 1500V DC(IEC)
Maximum Series Fuse Rating 25A
Operating Temperature -40℃ to +85℃
* STC：AM 1.5, Irradiance 1000W/m², module temperature 25℃

Solar Cells Monocrystalline 182× 91mm 108（6×18）

Dimensions Weight

1724mm×1134mm×30mm 21.0kg

Front Glass High transmission tempered glass Frame Anodized aluminum alloy

Junction Box IP68

Cable

4mm²(IEC) Length: (+) 200mm, (-) 300mm

Connectors MC4 / MC4 Compatible
