Schneider Electric, ComPacT NSX MCCB 4P 160A, Fixed Mount

“ Brand New in Box ” (94062)

1 x available in stock rrp - €1100
__________________

Collection is available in the Kilkenny Area
or
Postage is available for €6 extra.
Shipping Nationwide: 1-2 working days
__________________

Product Description >>>

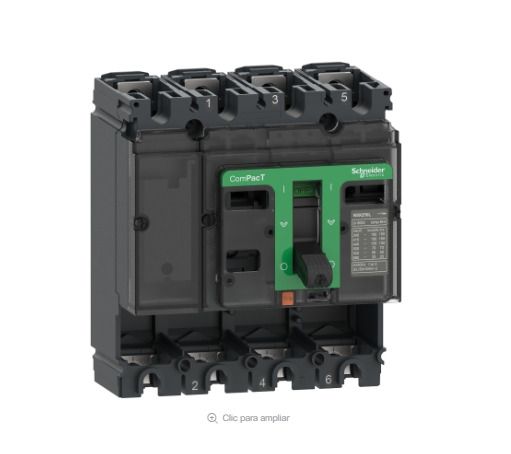

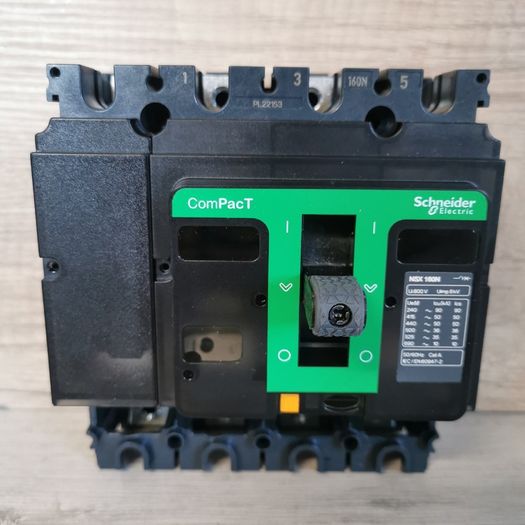

Break Block ComPacT NSX160N 50kA AC 4P 160A

MCCBs

Datasheet
file:///C:/Users/stuff/Downloads/Nueva%20generaci%C3%B3n%20ComPacT%20NSX_C16N4.pdf

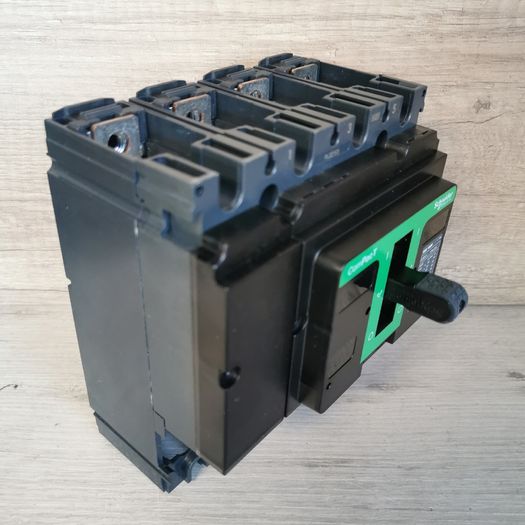

This is a 4 pole breakout block for the ComPacT NSX160N.

ComPacT NSX is designed to optimize space and breaking power for all standard and specific applications.

This cutting block comes without a control unit and is compatible with any type of control unit that must be ordered separately.

The breaking capacity Icu is 50kA at 415VAC 50/60Hz.

The operating voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is earth leakage protection).

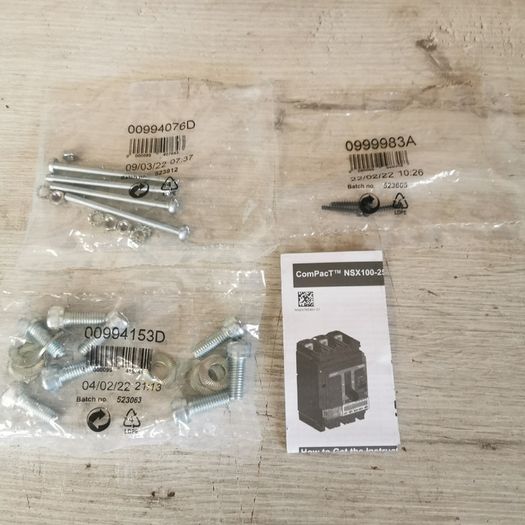

It can be equipped with a variety of optional features and accessories. The dimensions are 140mm x 161mm x 86mm.

Complies with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160N is part of the Schneider Electric EcoStruxure Power architecture.

The operational voltage is 690VAC 50/60Hz.

TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection.

This NSX version comes with a variety of optional functions and accessories.

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Specifications:

Spectrum ComPacT new generation

Product name UL Compact

Abbreviated team name NSX160N

Product or component type Basic frame

Function For current > 0.1 A

Number of poles 4P

neutral position Left

[In] Rated current 160A at 40°C

[Ue] Rated operating voltage 690 V AC 50/60 Hz according to En> 50 A

network type AC

network frequency 50/60hz

sectionalizing power Yes according to Icu

employment category Category A

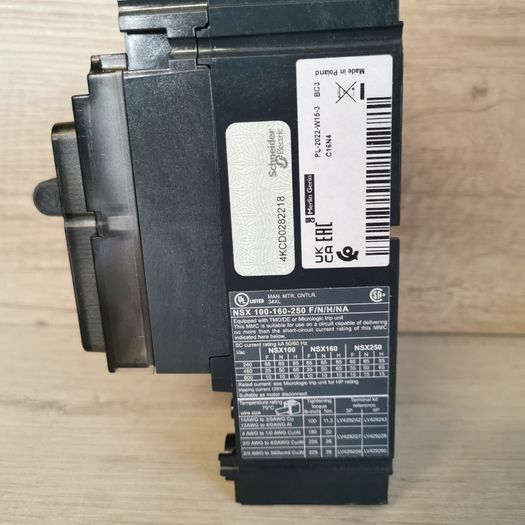

[Icu] rated ultimate short-circuit breaking capacity

10 kA at 600 V AC 50/60 Hz conforming to UL 508

85 kA at 240 V AC 50/60 Hz conforming to UL 508

10 kA Icu at 660/690 V AC 50/60 Hz conforming to En> 50 A

35 kA Icu at 525 V AC 50/60 Hz conforming to En> 50 A

50 kA at 480 V AC 50/60 Hz conforming to UL 508

36 kA Icu at 500 V AC 50/60 Hz conforming to En> 50 A

50 kA Icu at 380 /415 V AC 50/60 Hz conforming to En> 50 A

50 kA Icu at 440 V AC 50/60 Hz conforming to En> 50 A

90 kA Icu at 220/240 V AC 50/60 Hz conforming to En> 50 A

Performance level Without protection 50 kA 415 V AC
Control type Handle
mounting type Permanent

[Ui] Rated insulation voltage 800 V AC 50/60 Hz according to En> 50 A

[Uimp] Resistance to voltage spikes 8 kV according to En> 50 A

[Ics] rated service short-circuit breaking capacity
10 kA at 660/690 V AC 50/60 Hz conforming to En> 50 A

35 kA at 525 V AC 50/60 Hz conforming to En> 50 A

36 kA at 500 V AC 50/60 Hz conforming to En> 50 A

50 kA at 380/415 V AC 50/60 Hz according to En> 50 A

50 kA at 440 V AC 50/60 Hz according to En> 50 A

90 kA at 220/240 V AC 50/60 Hz according to En> 50A

mechanical durabikity

40000 cycles according to En> 50 A

electrical durability
40000 cycles 440 V AC 50/60 Hz In/2
conforming to En> 50 A
15000 cycles 690 V AC 50/60 Hz In/2
conforming to En> 50 A
20000 cycles 440 V AC 50/60 Hz In conforming to En> 50 A

7500 cycles 690 V AC 50/60 Hz In according to En> 50 A

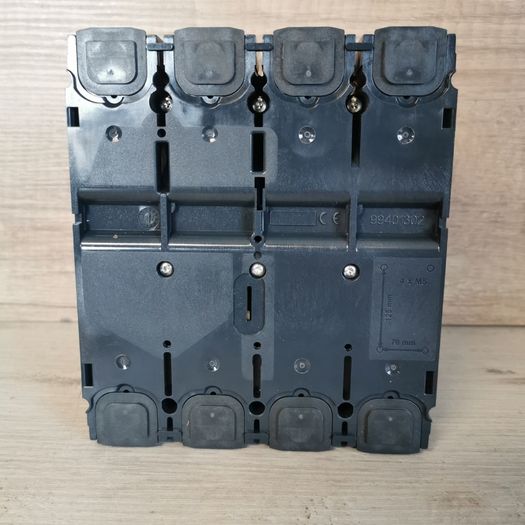

Mounting bracket Back plate

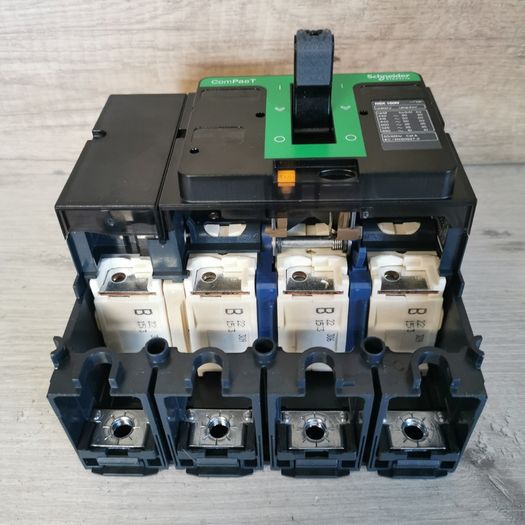

top connection Frontal
connection down Front of
connection step 35mm
protection type Without protection
Width (W) 140mm
Height(H) 161mm
Depth (D) 86mm

Rules
Icu UL 508
product certifications UL
CSA pollution degree
3 according to IK07
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Ambient operating temperature
-25…70°C
Ambient storage temperature
-50…85°C
