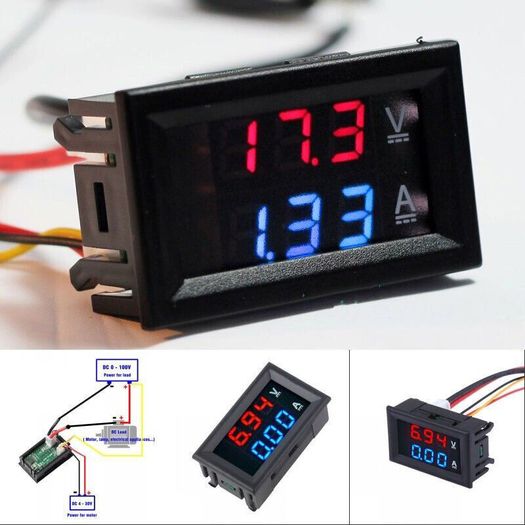

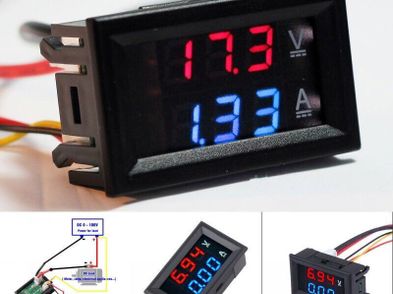

Digital Voltmeter Ammeter DC 100V 10A Amp Voltage Current Meter Tester 0.28 Inch Dual LED Display Panel with Connect Wires
100% Positive feedback, Buy with confidence from an trusted experienced seller
All item are new and not open to offers. May do a deal if buying multiple items but this item is priced to sell and will not be discounted further
More ads here https://www.adverts.ie/member/2024014/ads
Can post same working day if paying via PayPal
2 in 1 function Voltmeter Ammeter
Dual color LED Display (Blue and Red)
Voltages and Amps are shown at the same time in the display
The power supply can be taken from the test circuit, no additional power supply as long as the supply voltage doesn't exceed 30V.
Power supply DC 4.5~30V range (Attention: The supply voltage cannot exceed 30V, or the unit will be destroyed)
This meter has three wires for easy connections to a car /battery car/ motorcycle car which can monitor the battery voltage status.
Features:
Dual 0.28 " LED, display (Blue and Red)
Power supply DC4.5V~30V
Measuring range (V): DC 0V~100V
Measuring range (A): DC 0A~10A
Voltage resolution : 0.1V
Current resolution: 0.1A
-Measurement rate: ≥ 300mS
Measurement accuracy: 1% (± 1 digit)
-Operating Current <20mA
-Operating Temperature: -10℃ to +65℃
-Operating Humidity: 10 to 80% (non-condensing)
-Working pressure: 80 ~ 106kPa
-Sun exposure: no direct exposure
-Dimensions: 48 × 29 × 21 mm
-Cutout: 45.5 × 26.5 mm
