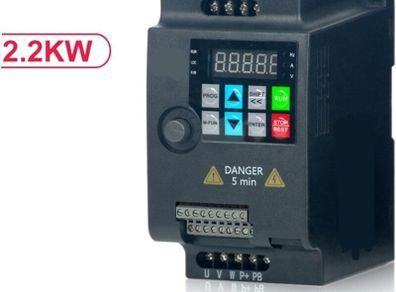

380v 2.2KW Motor Speed Controller VFD Inverter Frequency Converter(2.2KW 220V)

Shipping: Nationwide

Delivery: 2-5 working days

Our Customer First: Customer satisfaction has always been our pursuit

Output Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/11kw
Rated Frequency :50hz/60hz
Output Frequency Range:0~400Hz
Input Voltage Range:1 phase, 3 phase 220V, 380V
Output Voltage Range: 3 phase 380V±15%
Control way: Open loop vector control (SVC) V/F control
Main function: Control and adjust the speed of the ac motor
Feature:
Humanized keyboard design, convenient operation and clear display
The motherboard is intelligent and efficient, with full-featured, three-proof paint treatment, dust-proof, stable and durable
Double-layer board design, reasonable structure and safety, greatly reducing the failure rate
Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety
Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation
Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

Specification:
Item Type: Variable Frequency Drive

Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz

Output Voltage: AC 3PH 0V-380V 0Hz-650Hz

Matching Motor Power: 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW

Rated Current: 2.5A / 3.7A / 5A / 8.5A / 13A / 16A / 25A

Voltage Type: AC220V to AC380V and AC380V to AC380V

Output Voltage Adjustment Mode: PWM control

Control Method: Current vector

Filter: Built-in filter



Product Function:
Low frequency and large torsion

Sensorless vector control

Standard V / F control

Multi-speed adjustable

Built-in RS485 communication

Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower
