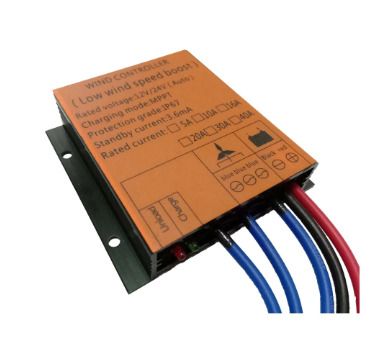

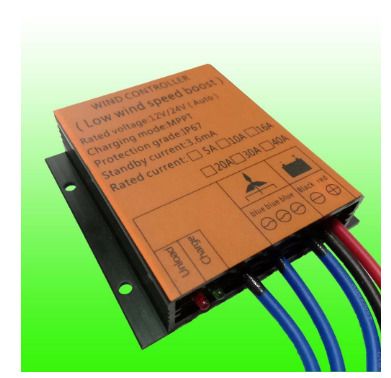

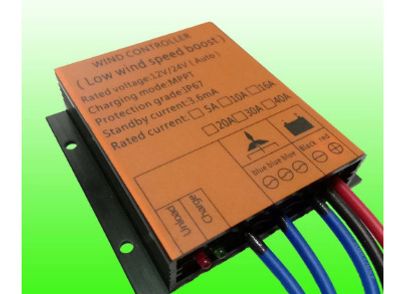

10A with 12V/24V AUTO Waterproof Wind Turbine Generator Charge Controller Regulator Wind Controller

Shipping Nationwide 1 to 3 working days
Collection to be arranged
Cash on Delivery COD (Pay on Delivery )

Condition: 100% New in Box

Item:B298


Description:

The controller will automatically detect the battery voltage 12 volt or 24 volt and call the corresponding parameters to charge the battery.In order to protect the system including the wind generator and the battery, the controller will brake the wind generator when the battery is completely charged or the input voltage is too high. When the input voltage from wind generator becomes lower, the controller will automatically recover the charging.Three LED indicators are used to show the status of the system.Waterproof body, protection gradeup to IP67.Wide range working temperature, -35℃～70℃.

Specification:

Rated Battery Voltage: 12V/24V

Rated Wind Turbine Power: 10A(12V 150W/24V 300W)

Brake Down: 15/30V

Restart: 13.5/27V

Max Current (Optional) 10A

Wokring Temperaure: -35 to 75 Degree Centigrade

Dimension: 81*80*20MM/81*80*32MM/81*97*20MM/81*97*32MM

How To Assemble?

First: Connect the red and black lines with the "+" &"-" of the battery bank

Second: Connect the three green wires with the output wires of the wind turbine generator
Notice:

Make sure the rated output voltage of the wind turbine same with the rated voltage of the battery bank.

Don’t directly connect the wind controller with the wind turbine until connected with the battery.


Instructions:

This wind controller has three indicator lights to show the working status of the system.

"Brake" Light

When the wind turbine generator is braked, the red light will be on.

When the battery full charged or the wind speed too high, it will happen.

"Charge" Light

The green light flashing means that the wind generator works and is charging the battery.

Flashing speed shows the rotate speed of generator.

"Battery" Light This green light on means that the battery is connected correctly.
