Panduit DP24688TYG 24 Port Patch Panel Cat6

Brand new

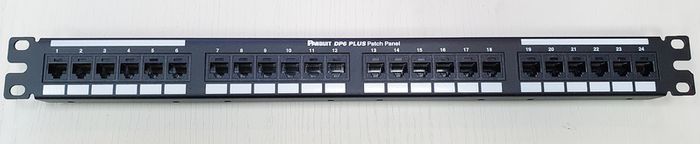

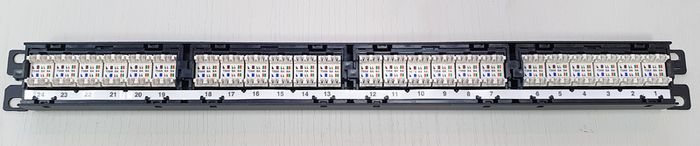

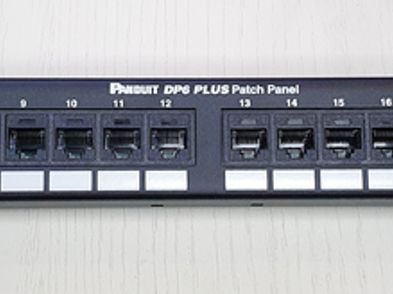

Panduit DP24688TGY Category-6 24-Port Flat Punchdown Patch Panel by Panduit

Specifications:

- Product Type: Patch Panel Kit
- Termination Style: Punchdown
- Patch Panel Style: Flat
- Performance Level: Category 6
- Material: CRS
- Wiring Scheme: T568A/T568B
- Number of Ports: 24
- Module Type: NA
- Number of Rack Units: 1
- Overall Width (In.): 19
- Overall Width (mm): 482.6
- Sub Brand: Pan-Net®
- Overall Depth (In.): 1.17
- Overall Depth (mm): 29.7
- Overall Height (In.): 1.72
- Overall Height (mm): 43.7
- Identification Type: Adhesive Label
- Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz. Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4 for PoE applications up to 100 W, UL 1863 approved, RoHS Compliant
- Maximum Operating Temperature (°C): 65
- Maximum Operating Temperature (°F): 149
- Minimum Operating Temperature (°C): -10
- Minimum Operating Temperature (°F): -14
- Overall Length (In.): 1.17
- Overall Length (mm): 29.7
