Mellanox 18-port FDR10 56Gb/s InfiniBand Switch

# Extra Questions Will Not Be Entertained, don't ask.

In perfect running condition, bought end 2025 and never used since. All info. is shared here in ad, extra questions will not be entertained, trial and receipts not available.

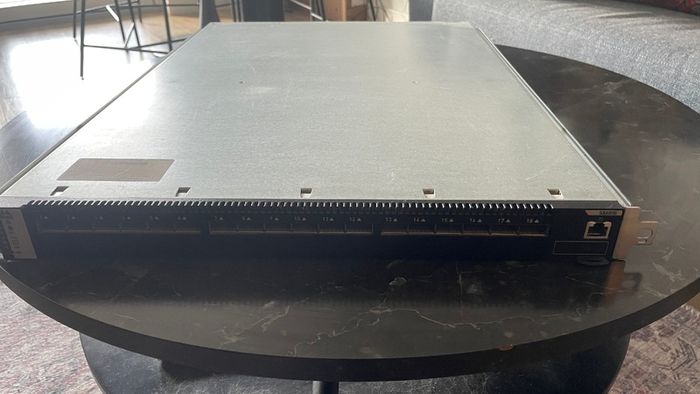

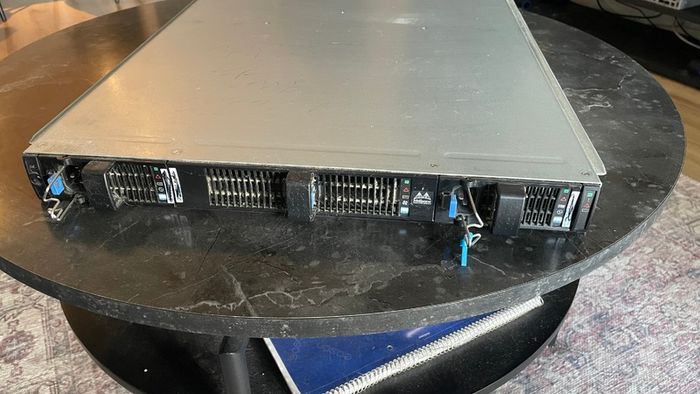

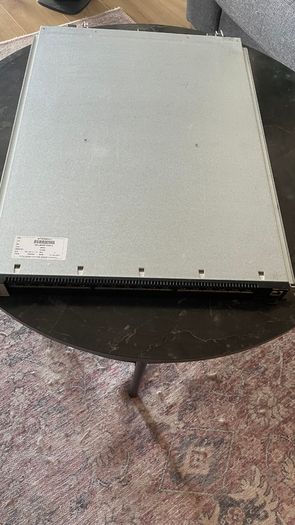

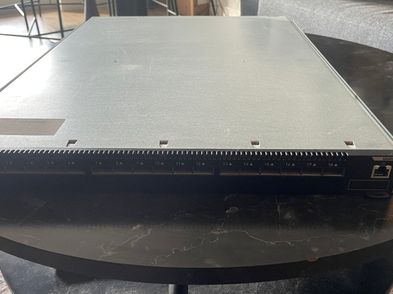

Mellanox SX6015 18-port Unmanaged FDR10 56Gb/s InfiniBand Switch MSX6015T-1SFS.

The SX6015 is the industry's most cost-effective building block for deploying high performance clusters and data centers.

Built with Mellanox's sixth generation SwitchX-2 InfiniBand switch device, the SX6015 provides up to eighteen 56Gb/s full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.

6.3SX6015 Series
Table 22 - SX6015 Specifications
Feature
Value
Mechanical
Size:
Short - 1.716” (H) H x 16.85” (W) x16.8” (D), 43.6mm (H) x 428mm (W) x 428.9 mm (D)
Standard - 1.716” (H) H x 16.85” (W) x24.75” (D), 43.6mm (H) x 428mm (W) x 628.9 mm (D)
Mounting: 19” Rack mount
Weight:
Short -
System with 1 PSU: 8.01kg/17.65lbs
System with 2PSUs: 8.75kg/19.29lbs
Standard -
System with 1 PSU: 8.95kg/19.73lbs
System with 2 PSUs: 9.69kg/21.36lbs
Speed: 40, 56Gb/s per port
Connector cage: 18 QSFP+
Heat dissipation: 576 BTUs/hr
Environmental
Temperature:
Operational: 0° to 45°C
Non-Operational: -40° to 70°C
Humidity:
Operational: 10% - 85% non-condensing
Non-Operational: 10% - 90% non-condensing
Altitude:
Operational: 3050m
Regulatory
Safety: CS, cTUVus, CE, CU
EMC: CE, FCC, VCCI, ICES, RCM
RoHS6
Power
Input Voltage: 100 - 240 VAC 50-60Hz
Typical (ATIS score under "snake" topology) with passive cables: 78.15W:
62.46
Main Devices
CPU: N/A
Switch: Mellanox SwitchX®-2
Switching
Capacity: 2.02 Tb/s non-blocking

Rack rails and ears included.
