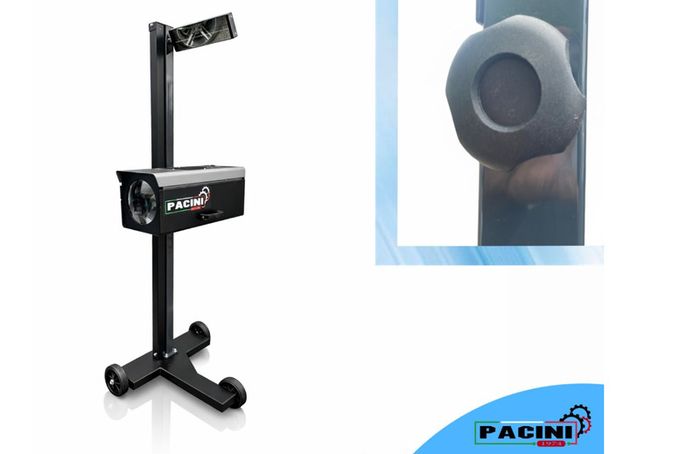

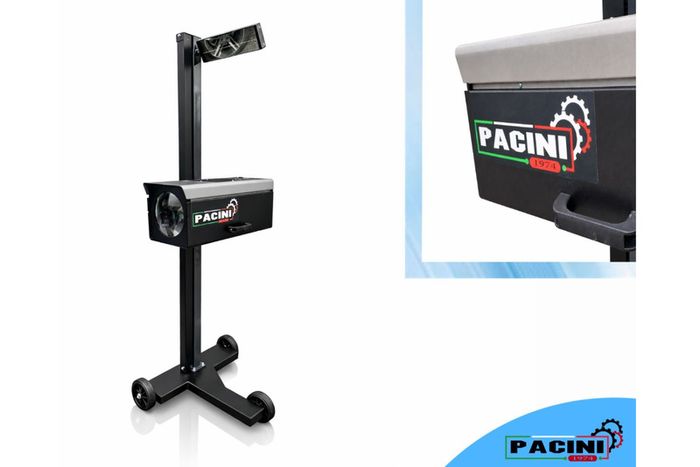

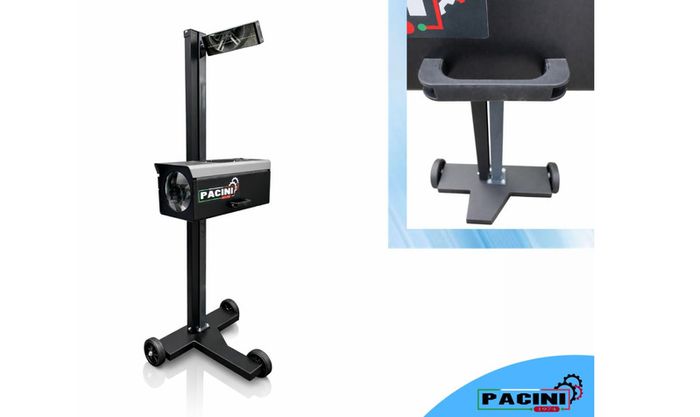

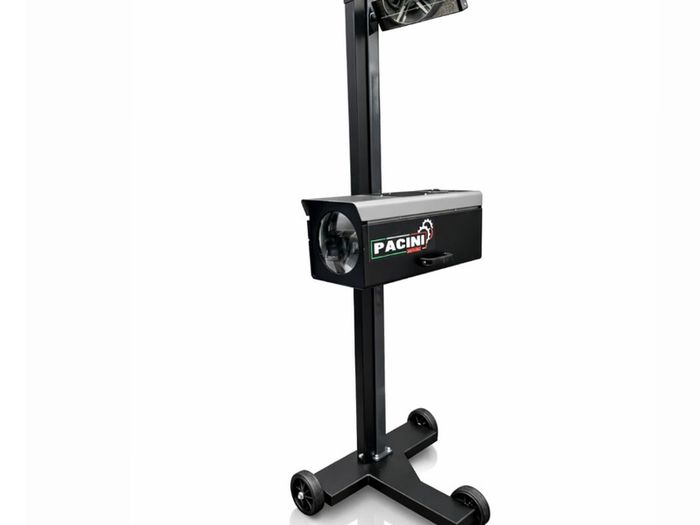

PACINI PCA26DLX
Engineered and manufactured in Italy, the PACINI PCA26DLX High Precision Headlight Tester represents the perfect balance of advanced optical technology, mechanical precision, and elegant Italian design. Built for professional workshops and vehicle inspection centers, it delivers reliable, repeatable, and regulation-compliant headlight testing for today’s modern vehicles.

Designed with the craftsmanship Italy is known for, the PCA26DLX combines robust construction, refined ergonomics, and high-accuracy measurement systems, ensuring long-term performance even in demanding workshop environments
Technical Highlights
Overall height: 166 cm

Dimensions (W × L): 61 × 65 cm

Weight: 30 kg

Power supply: 9V battery

Standards & compliance: ISO 10604, CE certified
Details

Premium Features & Performance
Multi-technology headlight compatibility
Designed to accurately test and adjust Halogen, LED, and Xenon headlights, including symmetrical and asymmetrical beam patterns found on modern vehicles.

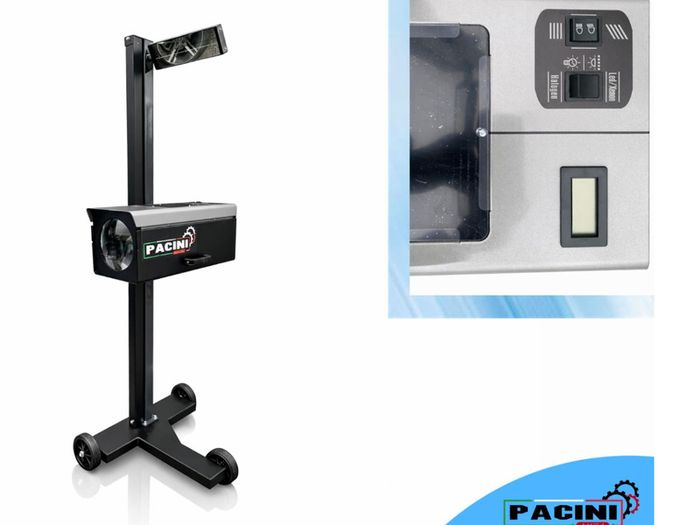

Advanced halogen brightness control
Integrated digital luxmeter ensures precise brightness verification, helping technicians meet inspection and safety regulations with confidence.

High-definition Plexiglas optical system
Precision-engineered smoked Plexiglas optical lens delivers sharp beam definition and long-lasting optical clarity, protected within a durable optical chamber.

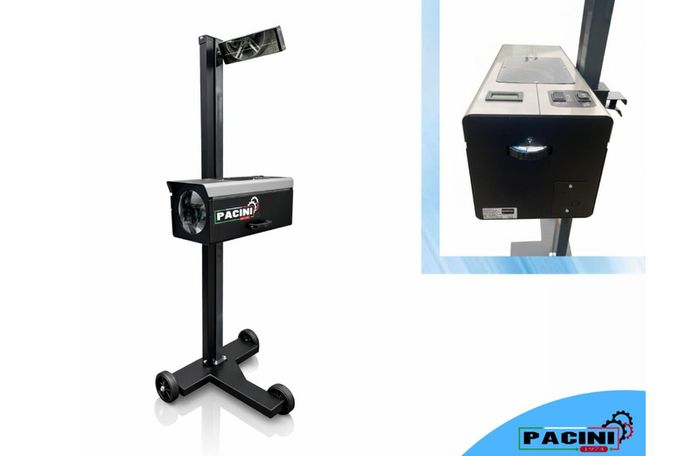

Integrated digital luxometer
High-accuracy photodiode sensors collect real-time light intensity data for:

Low beam headlights

High beam headlights
Supporting Halogen, LED, and Xenon modes for maximum versatility.
Mirror visor alignment – Italian precision at work
The standard mirror visor enables fast and accurate alignment with the vehicle’s longitudinal axis, ensuring correct positioning before every test.

Autonomous power supply
Fully independent operation via internal 9V battery, ideal for flexible workshop layouts without external power constraints.

Wide operating height range
Adjustable working height from 240 mm to 1260 mm, making it suitable for cars, SUVs, vans, and light commercial vehicles.

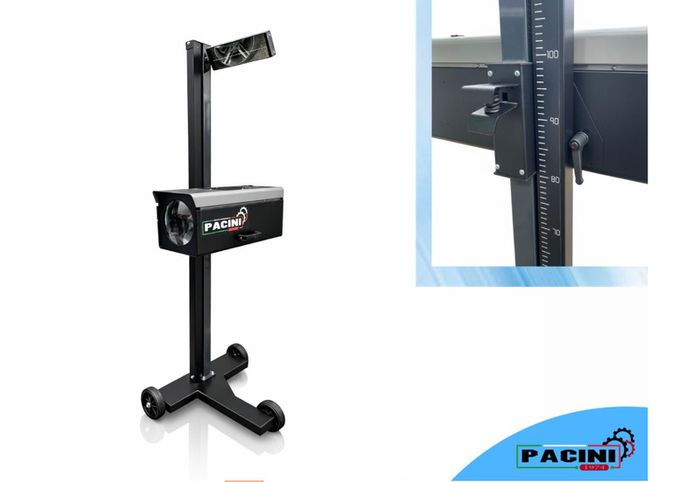

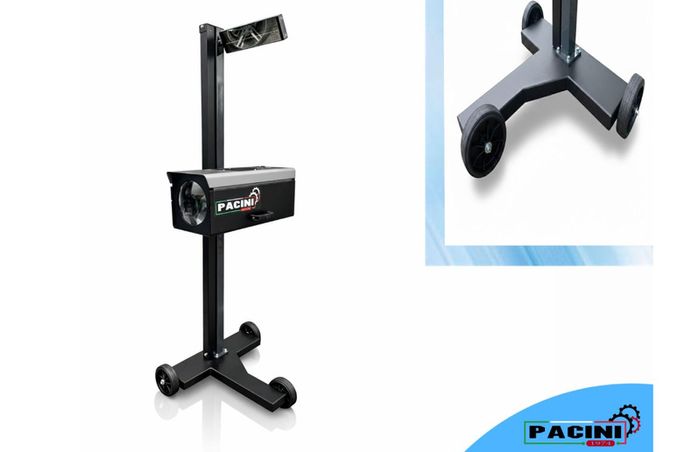

3-piece heavy-duty sliding column
A robust vertical post with smooth, precise sliding mechanism ensures stability, ease of adjustment, and long-term reliability.

Laser alignment – optional upgrade
Compatible with PACINI laser visor and laser pointer systems (optional, not supplied as standard), allowing even faster and more accurate alignment when paired with the PACINI beam setter band.

Made in Italy
Designed. Engineered. Manufactured in Italy.

The PACINI PCA26DLX is not just a headlight tester. it’s a statement of Italian technological excellence, delivering precision, durability, and refined design for professionals who demand the best.
