Esp 415 M2

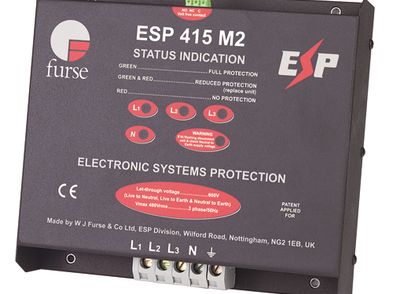

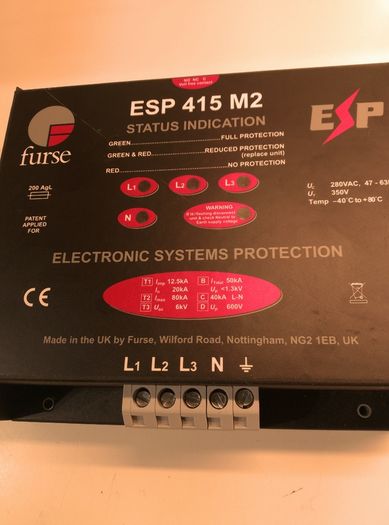

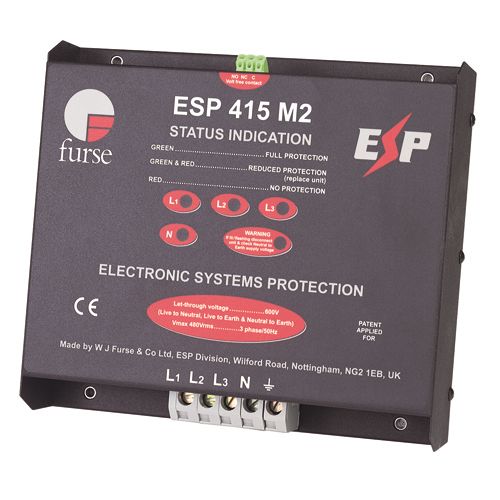

Mains supplies (extra high maximum surge currents) – ESP 415 M2

General Information
Extended Product Type:
ESP 415M2
Product ID:
7TCA085460R0119
EAN:
5414363086376
Catalog Description:
ESP 415M2 Surge Protective Device
Long Description:
ESP 415M2 TYPE 1+2+3 POWER SPD FOR 3 PHASE 415V SUPPLIES, HIGH SURGE CURRENT RATING

Technical
Suitable For:
To protect systems against transient overvoltages or surges from lightning and electrical switching events
Nominal AC Voltage of the System (Uo):
240 V
Maximum Continuous Operating Voltage (Uc):
280 V
Temporary Overvoltage Test Value (UT):
350 V
Discharge Current:
Nominal 20 kA
I (max, 8 / 20 µs) 80 kA
Short Circuit Withstand Icc:
25 kA
Short-Circuit Protective Devices:
≤ 200 A
Arrester Class:
I
II
III
Number of Protected Poles:
7
Connection Type:
Screw Clamp
Auxiliary Circuit Load:
250Vac - 1A
Remote Indicator:
Yes
Wire Stripping Length:
17 mm
Electrical
Voltage Protection Level ( Up):
600 V
Rated Frequency (f):
50 / 60 Hz

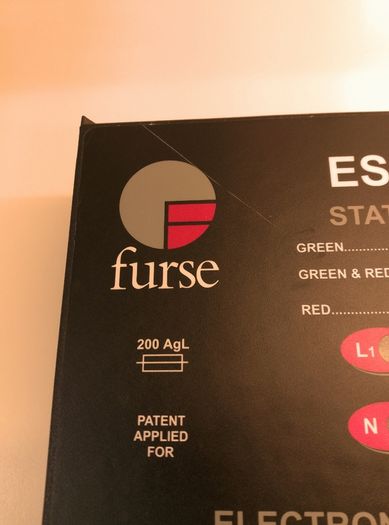

NEVER USED BUT HAS ONE SCRATCH FROM A KNIFE WHEN OPENING
