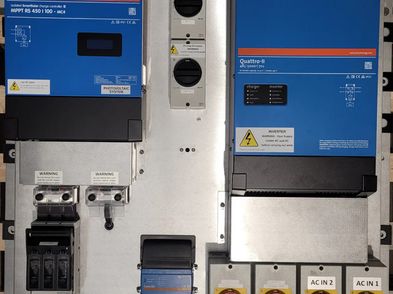

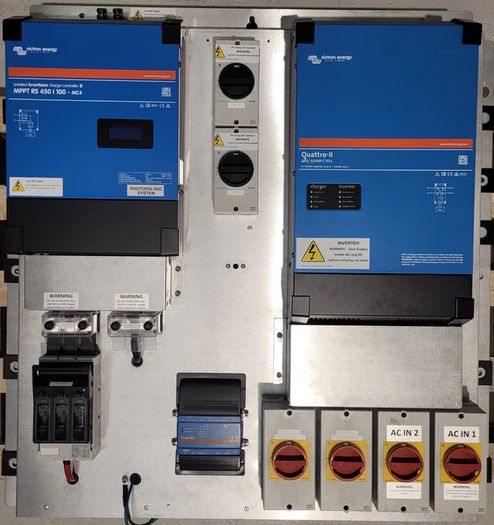

5kVA Victron Solar Hybrid Board Pre-Built and Pre Programmed

A complete Victron 5kVA solar hybrid control board, professionally assembled, wired, and pre-programmed for fast installation. If connecting to the grid, installation must be carried out by a qualified electrician.

Included Components

Victron Quattro II 48/5000 Inverter/Charger

Victron SmartSolar MPPT 450/100

Victron Cerbo GX system controller

AC Isolators

DC Isolators

Appropriate DC Fusing & Protection

Pre-terminated DC cabling

Fully mounted on board and pre-configured for commissioning

The board arrives fully built and programmed, significantly reducing installation time and ensuring the system is ready for straightforward integration on site.

Solar & Battery Compatibility

Designed to support up to 20 × 460W solar panels (approx. 9.2kW array) via the integrated MPPT.

Recommended battery storage: ~10kWh at 48V for optimal system performance.

Note:
Solar panels and batteries are not included and must be supplied separately.

Ideal for

Hybrid solar installations

Backup power systems

Off-grid or grid-assisted applications

Installers who want a fast, reliable Victron system ready to deploy

A powerful, installer-friendly solution built around Victron’s trusted ecosystem — delivering reliability, flexibility, and smart energy control.

Lead times vary. Contact to get your lead time.

4500+VAT
