34x 199mm spokes (2.3mm)

34x 199mm spokes (2.3mm) 34x 199mm spokes (2.3mm) Other Bike Parts & Accessories

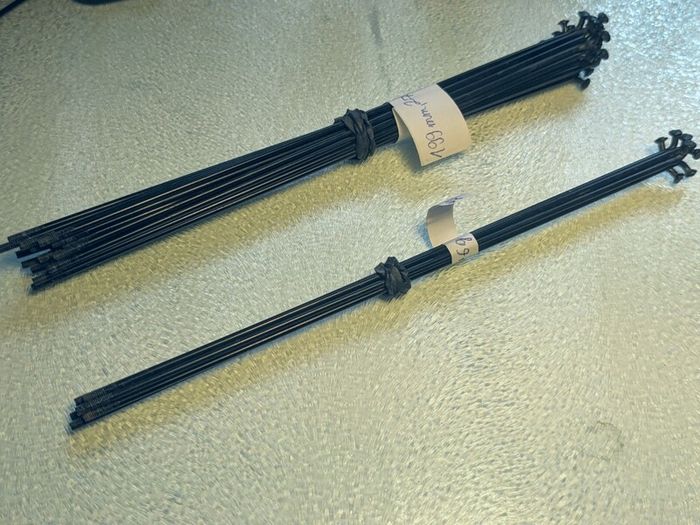

These came off a rear hub motor of my Samebike LO26.

34 available. Price is for set of 34 spokes.

Perfect for replacing spokes on similar 26" 500W non-fat hub motor ebikes.

The seem to have the "S" logo of "SLE Spoke" (Shuhn Lih Enterprise, Taiwan)* and are made of carbon steel (magnetic). Painted black.
*(http://www.mrrabbit.net/docs/spokeheads/main.html )

There is some (+-0.5mm) variation in the length of the 199mm spokes, and there are a few 200mm ones. I believe both sides of the wheel intended to use the same size, approximately 199mm.

*199mm, black, 27pcs, 173g total
*200mm, black, 7pcs, 46g total

The nipples are heavily corroded. They're OK for replacing a spoke or two but I wouldn't build a new wheel with those.

The spokes are 2.3mm in diameter, so they take an unusual nipple. My Sapim 2.3mm spoke nipples fit:
Nipple FG2,6/4/14mm SAPIM POLYAX nipple
Material: Brass
Nipple surface: Nickel
Thread: FG2,6/0,45 mm
D - nipple length: 14 mm
G - dimple diameter: 4 mm
K - flange diameter: 6 mm
Z - key indent: 3,45 mm
B - indent length: 6 mm
(https://e-spokes.eu/p303,nipple-fg2-6-4-14mm-sapim-polyax.html )

Free collection in Cork.
Postage available ~6e.
