MILITARY DS-1 stereoscopic rangefinder

price negotiable



The DS-1 military rangefinder (often referred to as the DS-1 stereoscopic rangefinder) is an optical measuring device used by ground artillery and engineer troops to determine distances. It is a stereoscopic device, often used by Warsaw Pact military units.
Here is a detailed description of the device:
1. Applications and functions
Distance and angle measurement: It is used for precise distance measurement (telemetry) and horizontal angle measurement, allowing for the determination of a target's polar coordinates.
Observation: Its periscopic design allows for terrain observation and concealed measurements.
Night vision device: Often included with a night vision device (PDS-1), enabling operation in conditions of limited visibility. 2. Design and Operation
Stereoscopic (optical) rangefinder: Unlike modern laser rangefinders, the DS-1 operates on the principle of stereoscopic vision, utilizing the operator's binocular vision to determine distances.

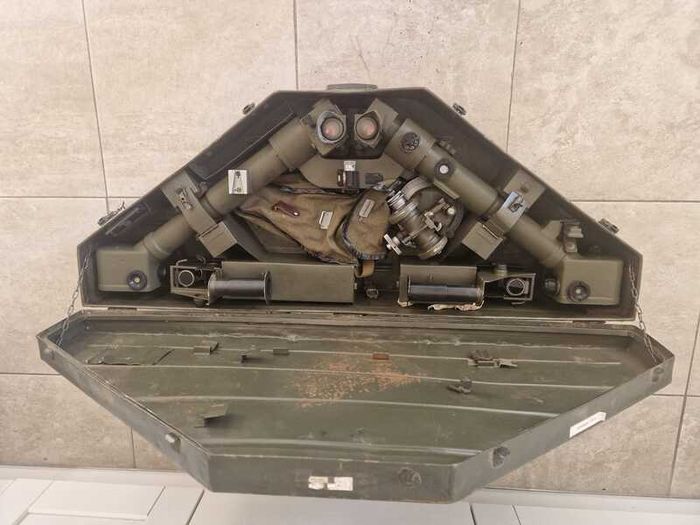

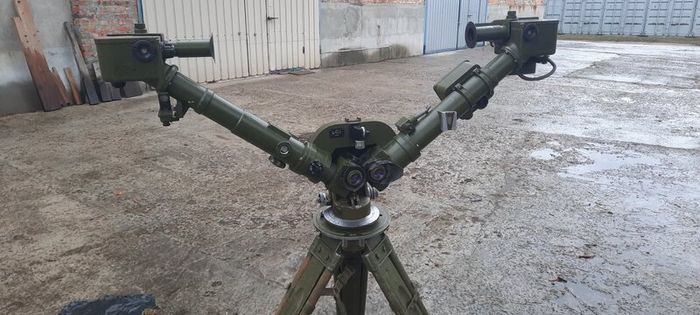

Shape: V-shaped (scissors/periscope rangefinder).

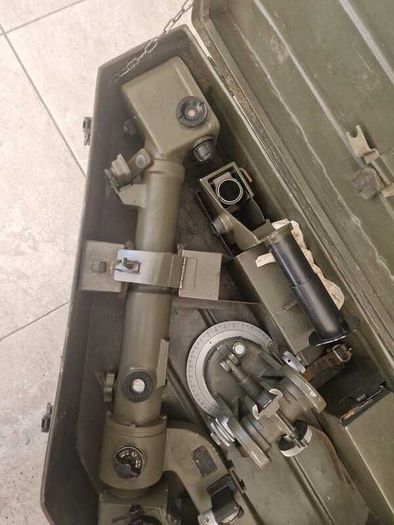

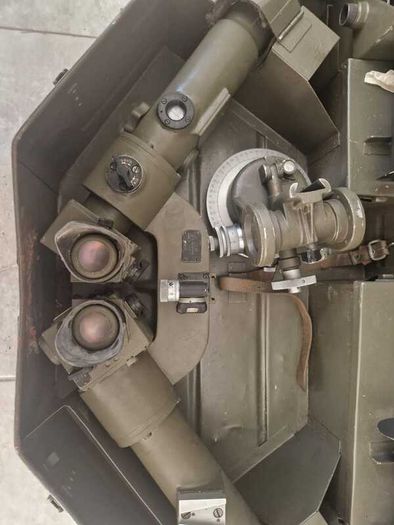

Optical Elements: Equipped with an eyepiece and prism system, as well as reticles for target alignment.

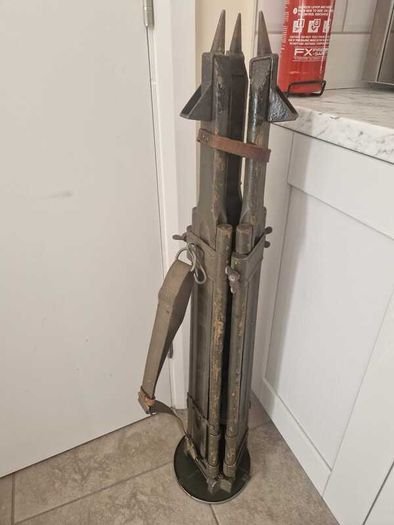

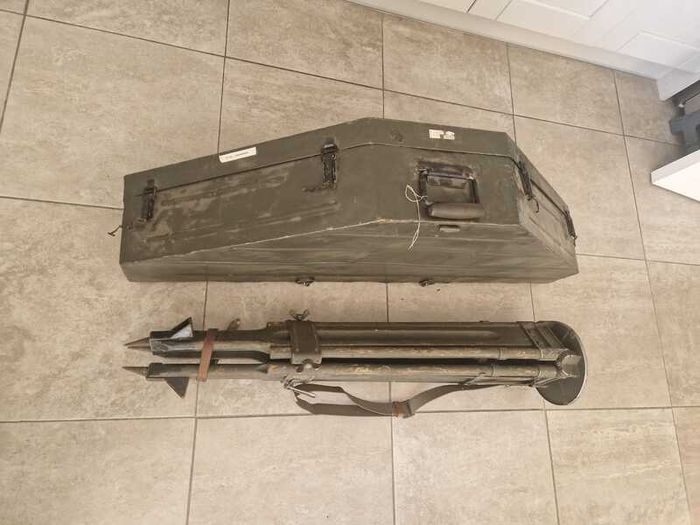

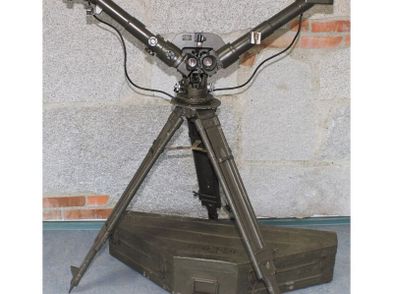

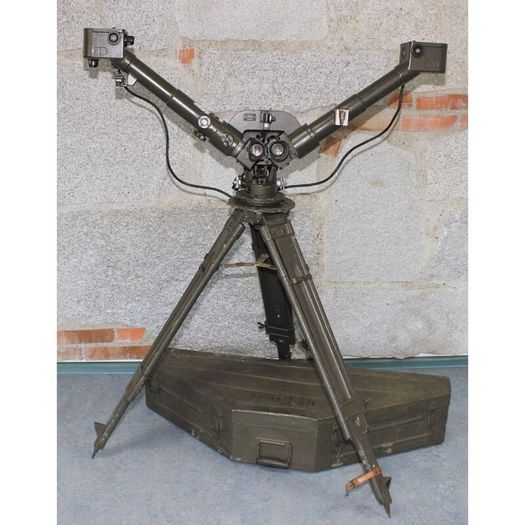

Mounting: The device is typically mounted on a tripod.

COLLECTOR'S ITEM
