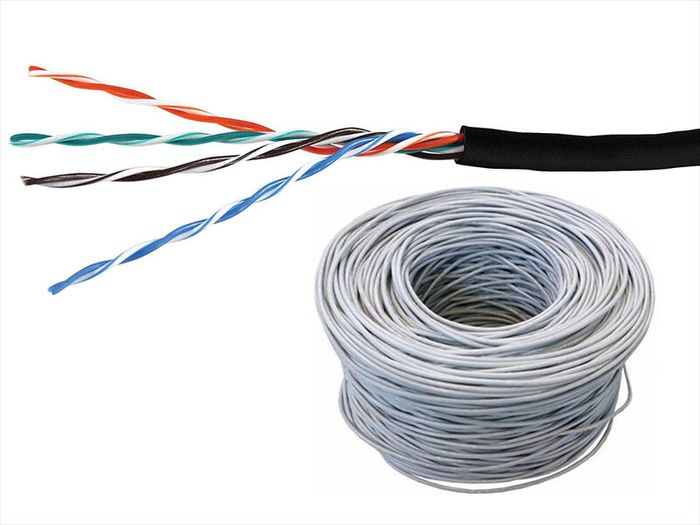

100m CAT5e Ethernet Network Cable Roll

Description of 100 CAT5e Cable (While Stocks last)


• CAT5e UTP100MHz Ethernet cable
• Colour: White/Grey
• Pairs: 4 Sets of Twisted Pair
• Dimensions
• Outer Cable Diameter: 4.86mm
• Outer Core Cable Diameter: 0.85mm (Inner 0.47mm)
• High Quality CAT5 Ethernet Cable
• Length: 100m
• Terminated: No
• Manufacturer: Philex
• Part Number: 70399/100
• Packaging: Vacuum Packed Roll
• Connector type:
• RJ45 8 Pin Connector
• Need to Use an RJ45 Crimping Tool
• CC 8544492000 1.9kg N

USES of CAT5e Ethernet Cable

Used in conjunction with RJ45 connectors & a crimping tool for:

• Building Local Area Networks (LANs) for connecting computers, printers etc into a network
• Connecting the ethernet port on a satellite receiver to the internet
• Connecting IP security cameras back to a router

NOTES on Cable & Connectors

• The RJ stands for 'Registered Jack'
• The RJ11 comes with 4 pin slots
• Only the 2 middle pins are needed
• It is used for dial up internet or voice but not broadband.
• It is used with telephone cables
• If the RJ connector has copper pins in all 4 slots
• It is actually an RJ14 but can be used as if it was an RJ11
• The other commonly used RJ plug is the RJ45
• It is used with LAN networks, ethernet ports etc
• It has 8 pins
• It is used with CAT5 Ethernet Cable
