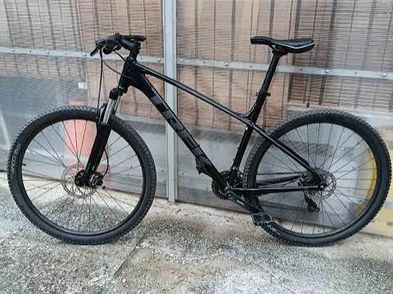

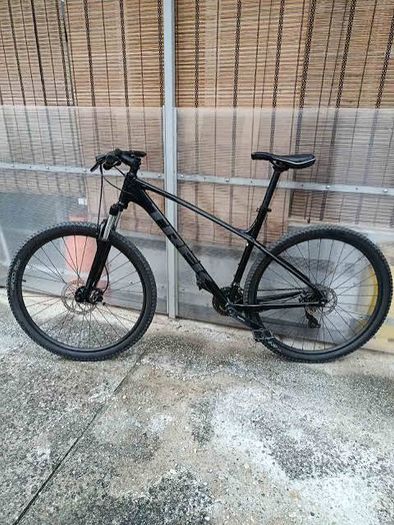

Bike Trek Marlin 5 XL 29" wheels

Frame
Size: XL
Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR

Fork
Size: XL
SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels
Hub front
Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front
116x5mm QR
Hub rear
Formula DC-27, alloy, 6-bolt, 7sp freehub, 135x5 mm
Skewer rear
152x5 mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes
14 g stainless steel, black

Tyre
Size: XL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00"
Size: XL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Max tyre size
Frame: 29x2.20" (XS & S: 27.5x2.40")

*Shifter
Size:XL
Shimano Altus M315, 7 speed
Size: XL
Shimano Altus M315, 3-speed
Front derailleur
Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull
Rear derailleur
Shimano Tourney TY300
*Crank: XL
Shimano Tourney TY301, 42/34/24, 175 mm length
Bottom bracket
VP BC73, 73 mm, threaded cartridge
Cassette
Shimano HG200, 12-32, 7-speed
Chain
KMC Z7, 7-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x/2x: 34T, 3x: 42T

Components
Saddle
Bontrager Arvada, steel rails, 138 mm width
*Seatpost: XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar

Size: XL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips
Bontrager XR Endurance Comp
*Stem
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Head set
Semi-integrated, 1-1/8"
Brake
Tektro HD-M275 hydraulic disc, 180 mm rotor
Brake Set
Tektro HD-M275 hydraulic disc, 160 mm rotor

Weight
Weight
M - 14.44 kg / 31.84 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
