Odroid H3 Mini Pc Mobo With Intel Cpu, M.2 Pcie Sata 6x2.5gbe Lan Hdmi Dp Spdif | Nas | Sbc | Nuc

###### WHAT IS INCLUDED ######

Brand new parts

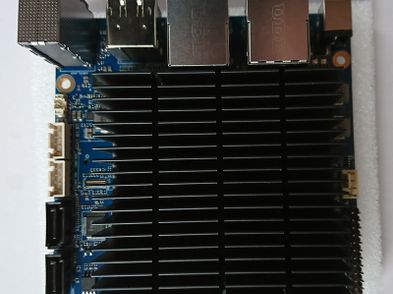

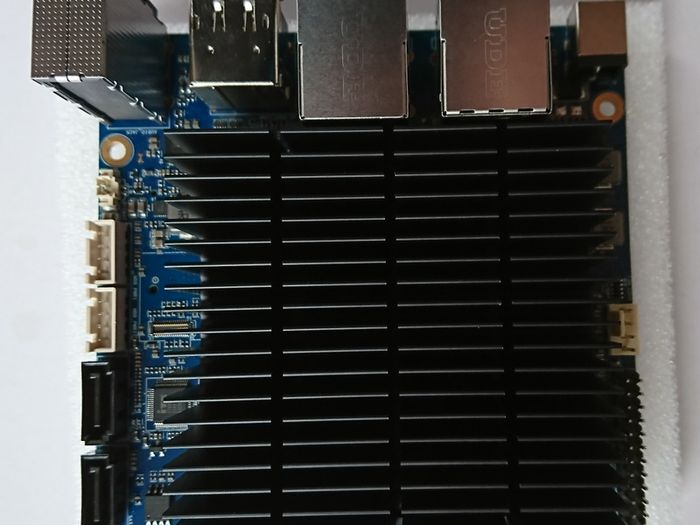

🍅 - HARDKERNEL ODROID H3 motherboard with its Intel CPU and passive cooling solution

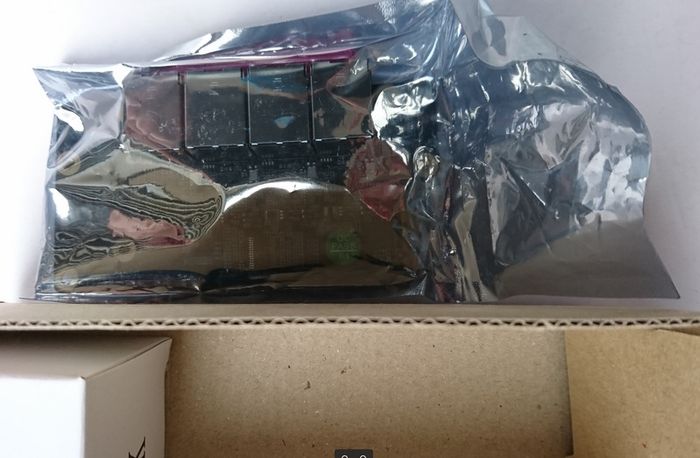

🍅 - official 4-port 2.5GbE expansion board (adds 4 additional 2.5 Gbps Ethernet ports)

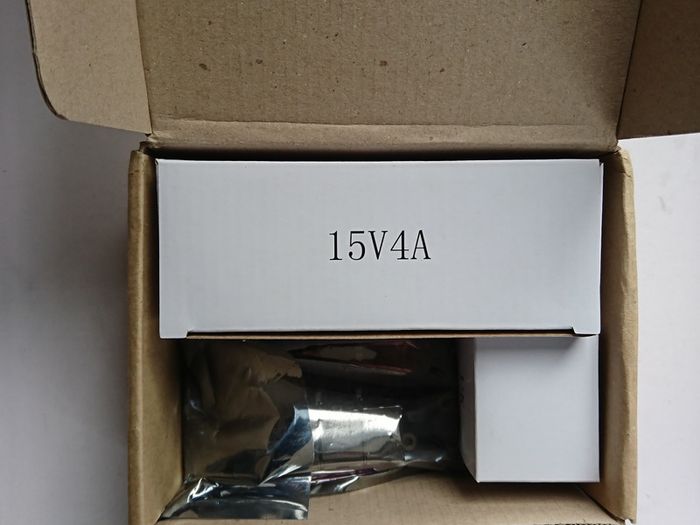

🍅 - Power supply with standard BS 1363 plug

Second-hand parts in excellent condition
🍓 - One Samsung PM991 MZ-VLQ2560 256GB NVMe SSD
🍓 - One Kingston 16GB SODIMM PC4-25600 3200MHz DDR4 RAM stick
Tested and in perfect working order


###### TECHNICAL SPECS ######

ODROID H3 board features
Intel Quad-Core Processor Jasper Lake N5105 10 nm process, 2GHz base clock, 2.9GHz boost clock, 1.5 MB L2, 4 MB L3 cache.
Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
Two SO-DIMM slots, up to 32GB per slot
PCIe 3.0 x 4 lanes for one M.2 NVMe storage
2 x 2.5Gbit Ethernet ports
2 x SATA 3.0 ports
SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
Intel UHD Graphics 24 EUs Turbo 800MHz
HDMI 2.0 and DP 1.2 multiple video outputs
A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
RTC / BIOS backup battery is included
Size: 110mm x 110mm x 47mm approx.

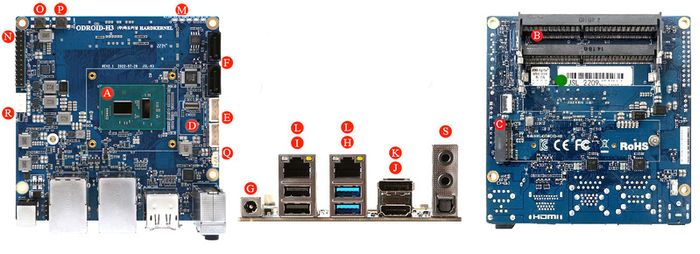

A. CPU (Intel Celeron N5105

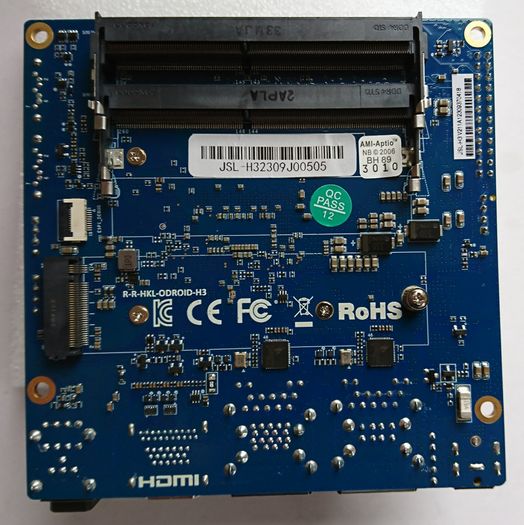

B. 2 x DDR4 SO-DIMM slots (Dual channel memory support)
C. 1 x M.2 PCI Express Module Socket (NGFF-2280)
D. 1 x eMMC (Embedded Multimedia-Card) Socket
E. 2 x SATA Power Connectors (2.5mm pitch, JST-XH compatible connector)
F. 2 x SATA3 6.0 Gb/s Data Connectors
G. 1 x DC Power Jack
H. 2 x USB 3.0
I. 2 x USB 2.0
J. 1 x HDMI 2.0
K. 1 x DisplayPort 1.2
L. 2 x RJ45 Ethernet Ports (10/100/1000/2500)
M. 5 x System LED Indicators
N. 1 x Peripheral Expansion Header (24-pin)
O. 1 x Power Switch
P. 1 x Reset Switch
Q. 1 x Backup Battery Connector (2-pin)
R. 1 x Active Cooling Fan Connector (4-pin)
S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out

Power consumption:
– IDLE : ≃1.9W
– CPU Stress : ≃15W
– CPU+GPU Stress : ≃18W
– Power-off : ≃0.25W
– Suspend : ≃0.6W
Note: The board does not support the hot-plug function for storage devices (SATA, eMMC, NVMe SSD) while the system power is on will cause serious damage to the board and devices.


###### GENERAL DESCRIPTION ######

Odroid H3 is a x86 64-bit single board computer (SBC) manufactured in South Korea by Hardkernel with a footprint comparable to an Intel NUC mini PC with large memory capacity and advanced IO ports for DIY Windows / Linux / FreeBSD projects such as
home server
NAS
router
gateway
Proxmox
Pi-hole
Apache server
SQL database server
retro gaming emulation systems
...
Great for hobbyist and commercial use alike.


Selling as I didn't proceed with the project this was bought for.
