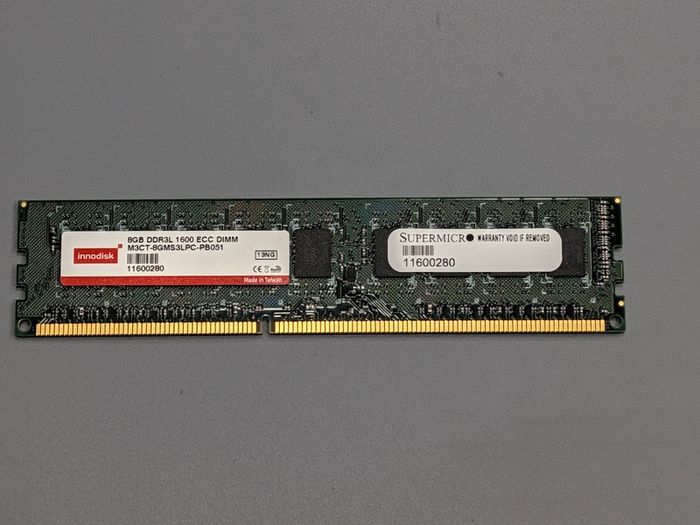

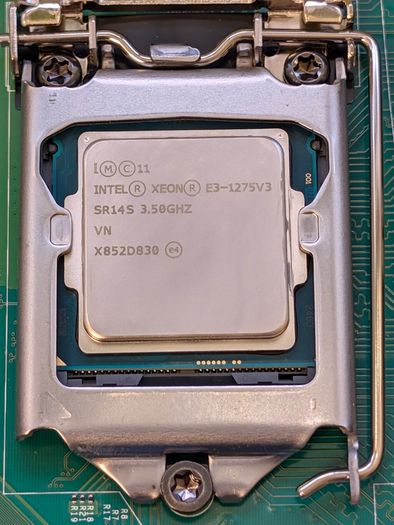

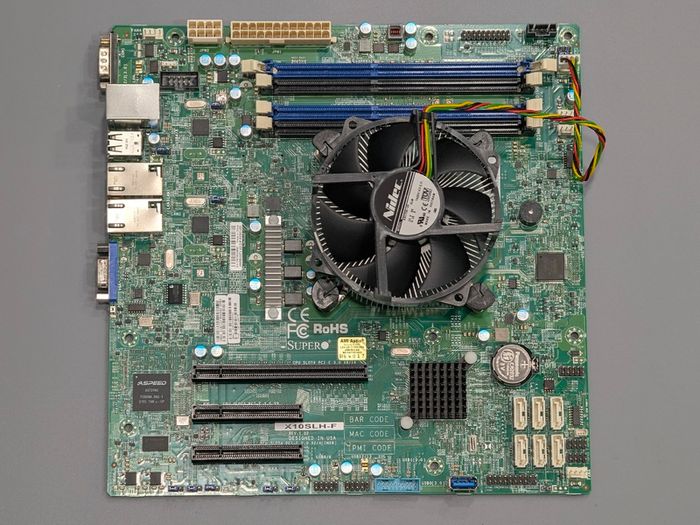

Motherboard X10SLH-F 8gb RAM ddr3 xeon E3-1275V3 combo

Motherboard X10SLH-F 8gb RAM ddr3 Xeon E3-1275V3 combo
Could add ssd 245gb drive

MBD-X10SLH-F

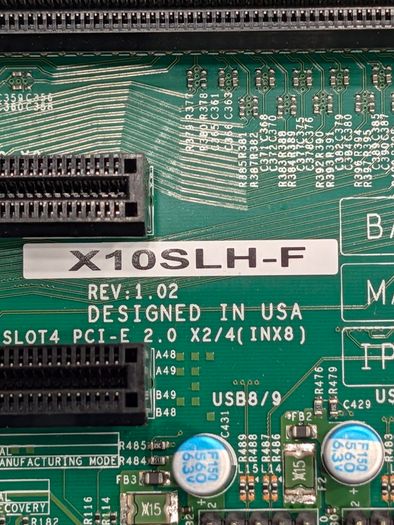

X10SLH-F

Physical Stats
Form Factor

Micro-ATX

Dimensions

9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache
CPU

Intel® 4th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®v, Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series
Single Socket LGA-1150 (Socket H3) supported, CPU TDP supports Up to 85W TDP

System Memory
Memory Capacity

Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots
4x 240-pin DDR3 DIMM sockets

Memory Type

1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

1GB, 2GB, 4GB, 8GB

Memory Voltage

1.35V, 1.5V

Error Detection

Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

Intel® C226 Express PCH

SATA

SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Network Controllers

Dual LAN with Intel® Ethernet Controller I210-ATSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)

Graphics

ASPEED AST2400 BMC

Input / Output
LAN

2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB

6 USB 2.0 ports (2 rear + 4 via headers)
4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)

Video Output

1 VGA port

Serial Port / Header

2 COM Ports (1 rear, 1 header)

TPM

1 TPM Header
